Controlled liquid mixing is essential in laboratory work.
Poor mixing can create uneven concentrations within a vessel. This may affect chemical reactions, instrument readings, and final test results.
A magnetic stirrer provides continuous liquid agitation through a rotating magnetic field. It drives a coated magnetic stir bar inside the sample. No motor shaft needs to enter the vessel.
This design makes it useful for routine laboratory processes such as:
Buffer preparation
Reagent mixing
Solid dissolution
Sample dilution
Analytical testing
Chemical synthesis
Culture media preparation
Temperature-controlled reactions
A magnetic stirrer usually performs best with low-viscosity liquids and small to moderate sample volumes. Some moderate-viscosity samples may also work when the instrument provides enough magnetic torque.
Thick gels, dense slurries, creams, and large production batches often require an overhead stirrer.
For laboratories evaluating equipment for these applications, HUXI provides magnetic stirrers for routine sample preparation, solution mixing, and temperature-controlled processes. Buyers should compare sample volume, liquid viscosity, speed range, and heating requirements before selecting a model.
This guide explains what a magnetic stirrer is used for, which samples it can mix, when heating is helpful, and how laboratories can choose the right configuration.
A magnetic stirrer is mainly used for controlled solution preparation and sample homogenization.
It provides steady liquid agitation over a defined period. This improves repeatability and reduces the need for continuous manual stirring.
A magnetic stirrer for buffer preparation helps dissolve salts, acids, bases, and other laboratory chemicals evenly.
It can be used to:
Prepare laboratory buffers
Mix stock solutions
Dissolve pH-adjusting chemicals
Maintain uniform reagent composition
Blend solutions before dilution
Support repeated reagent preparation
Buffer preparation often requires gradual reagent addition.
The stirrer keeps the liquid moving while the operator measures pH or adds chemicals. This reduces local concentration differences and helps added materials disperse more evenly.
A digital magnetic stirrer can also help users record exact RPM values. This is useful when the same buffer must be prepared repeatedly.
Tip: Record the buffer volume, stir bar size, RPM, pH endpoint, and mixing time for validated procedures.
A magnetic stirrer for dissolving solids increases contact between solid particles and the surrounding liquid.
It can help dissolve:
Laboratory salts
Soluble powders
Nutrients
Acids
Bases
Chemical standards
Culture media ingredients
Continuous agitation reduces clumping during powder addition.
It also moves fresh liquid around each particle. This may shorten preparation time for soluble materials and improve concentration uniformity.
However, stirring cannot make an insoluble material dissolve. Heavy particles may also remain at the bottom when liquid circulation is too weak.
The operator should match the stir bar size and stirring speed to the sample volume and viscosity.
A magnetic stirrer for analytical chemistry supports uniform sample preparation before measurement.
Common uses include:
Preparing calibration standards
Homogenizing liquid samples
Supporting sample dilution
Mixing reagents before analysis
Maintaining light suspensions
Preparing samples for pH testing
Supporting extraction preparation
Uniform samples improve measurement consistency.
A magnetic stirrer for titration is also useful because it keeps the sample moving while titrant is added. This helps the added reagent spread quickly throughout the vessel.
The stirring speed should remain controlled. Excessive vortex depth may introduce air, increase evaporation, or cause splashing.
Magnetic stirring is widely used during chemical synthesis.
It keeps reactants in regular contact and reduces concentration differences within the vessel.
Typical applications include:
Neutralization reactions
Small-scale synthesis
Solvent blending
Reagent addition
Extraction preparation
pH adjustment
Temperature-dependent reactions
Continuous agitation may improve reaction consistency and help maintain more uniform conditions.
However, stirring does not replace correct control of temperature, reaction time, pressure, or chemical concentration.
The operator must still follow the approved laboratory method.
A hotplate magnetic stirrer combines heating and liquid agitation.
A magnetic stirrer for temperature-controlled reactions can help:
Warm solvents
Improve solid dissolution
Support heated chemical reactions
Prepare culture media
Maintain target process temperatures
Reduce local temperature differences
The rotating stir bar moves warm liquid throughout the vessel. This can reduce local hot spots and improve thermal uniformity.
The displayed plate temperature may differ from the actual sample temperature.
Vessel material, sample volume, room conditions, stirring speed, and heat loss all affect the liquid temperature.
Use an external temperature probe when accurate sample control is required.
Note: Plate temperature is not the same as sample temperature. Measure the liquid directly when accuracy matters.
A magnetic stirrer for culture media helps dissolve nutrients and other media components.
It may also support:
Biological buffer preparation
Reagent mixing
Nutrient dissolution
Gentle sample agitation
Sealed-vessel mixing
Small microbiology workflows
Culture media often require uniform dissolution before sterilization or use.
Gentle stirring can reduce undissolved material without creating excessive foam.
Sensitive samples may need lower RPM settings. Strong vortex formation can introduce air and may affect some biological materials.
Multi-position magnetic stirrers allow several vessels to operate at the same time.
They are useful for:
Batch reagent preparation
Parallel quality control tests
Multiple sample dilutions
Repeated formulation work
High-throughput laboratory mixing
Comparative experiments
Some models apply one speed setting to all positions.
Other models allow independent control. Independent speed control is useful when samples have different volumes, viscosities, or mixing requirements.
Note: The most common purpose of a magnetic stirrer is controlled solution preparation and sample homogenization.
The value of magnetic stirring depends on the laboratory workflow.
Different industries use the equipment for different preparation, reaction, and testing processes.
Chemical laboratories use magnetic stirrers for:
Reagent preparation
Solvent blending
Chemical synthesis
Titration support
Heated reaction mixing
Standard preparation
pH adjustment
Stable agitation helps maintain uniform reaction conditions.
A hotplate model is useful when the process also requires controlled heating.
A magnetic stirrer for pharmaceutical laboratories can support:
Buffer preparation
Formulation development
Dissolution studies
Stability testing
Sample homogenization
Quality control procedures
Research sample preparation
Pharmaceutical laboratories often require repeatable speed, time, and temperature settings.
Digital controls can make these conditions easier to document.
Common uses include:
Culture media preparation
Nutrient dissolution
Buffer preparation
Biological reagent mixing
Gentle liquid agitation
Sealed-vessel mixing
The selected speed should remain suitable for the sample’s sensitivity.
Processes that create excessive foam or aeration may require gentler stirring.
A magnetic stirrer for water sample testing may help prepare samples before analysis.
Environmental laboratories may use it for:
Water sample preparation
Reagent mixing
Extraction solution preparation
Light soil suspension mixing
Pollution analysis
Calibration standard preparation
The sample should remain representative during the testing process.
Food laboratories may use magnetic stirring for:
Additive dissolution
Quality control sample preparation
Flavor solution mixing
Acidity testing
Ingredient analysis
Liquid sample homogenization
Thick sauces, creams, and dense food suspensions may require an overhead stirrer.
A magnetic stirrer is not suitable for every sample.
Its performance depends on viscosity, volume, vessel shape, vessel-bottom thickness, and magnetic coupling.
Magnetic stirrers work well with:
Water-based solutions
Buffers
Solvents
Laboratory reagents
Diluted acids
Diluted bases
Culture media
Calibration solutions
These liquids allow the stir bar to rotate freely.
They are usually the most suitable materials for routine magnetic stirring.
Some moderate-viscosity samples may also work.
Performance depends on:
Drive magnet strength
Stir bar strength
Vessel-bottom thickness
Liquid volume
Vessel diameter
Selected RPM
Higher viscosity increases resistance against the stir bar.
A stronger stir bar and lower speed may help maintain stable magnetic coupling.
The setup should be tested before routine or validated use.
Magnetic stirring can:
Dissolve soluble powders
Prepare salt solutions
Mix nutrients
Maintain light suspensions
Reduce mild sedimentation
Improve sample uniformity
Heavy particles may settle too quickly for a magnetic stirrer to keep them suspended.
An unsuitable powder may also block the stir bar before it dissolves.
An overhead or industrial stirrer is often better for:
Thick gels
Heavy slurries
Creams
Dense suspensions
High-viscosity polymers
Large production batches
Processes requiring high torque
These samples need direct mechanical force.
Note: Practical stirring capacity depends on viscosity, vessel shape, volume, and stir bar selection—not volume alone.
Magnetic stirring offers practical benefits for routine laboratory work.
The main advantages involve repeatability, contamination control, labor efficiency, and compact operation.
A magnetic stirrer maintains a defined stirring speed.
This reduces variation caused by manual stirring.
It can improve:
Batch consistency
Test repeatability
Mixing documentation
Operator standardization
Process control
Quality control records
Digital models make it easier to record RPM and mixing time.
The drive system remains outside the vessel.
Only the coated stir bar contacts the liquid.
This design supports:
Sealed-vessel mixing
Easier cleaning
Fewer contamination points
Cleaner sample handling
Lower exposure to external components
The stir bar must still be cleaned correctly between samples.
Magnetic stirrers can operate for extended periods.
They allow laboratory staff to complete other work while mixing continues.
Timer functions may also support controlled operation and shutdown.
This can improve workflow efficiency during repeated sample preparation.
Magnetic stirrers use limited bench space.
They are also quieter than many mechanical systems.
This makes them suitable for:
Small laboratories
Shared benches
Teaching laboratories
Research workstations
Quality control areas
Mobile or compact workspaces
Tip: B2B buyers should evaluate repeatability, usable capacity, and sample compatibility before comparing maximum speed.
A hotplate model is useful when the process needs both heat and mixing.
It combines two common laboratory functions on one platform.
Some materials dissolve more easily in warm liquid.
A hotplate magnetic stirrer can:
Warm the solvent
Maintain liquid movement
Reduce concentration differences
Support culture media preparation
Shorten selected dissolution processes
Temperature-sensitive chemicals should be heated carefully.
Some reactions require a defined thermal range.
A hotplate magnetic stirrer can maintain circulation during heating.
This supports more uniform reaction conditions and reduces local hot zones.
Use an external probe when the liquid temperature must be measured accurately.
A hotplate stirrer combines:
Liquid mixing
Sample heating
This reduces bench-space requirements and simplifies setup.
It may also reduce the need to move hot vessels between separate devices.
Useful safety features may include:
Over-temperature protection
Hot-surface warnings
Automatic shutdown
Adjustable temperature limits
External probe control
Timer functions
The required features depend on the sample and laboratory method.
Tip: Select a hotplate model only when heating adds clear value to the process.
Different equipment types support different applications.
Magnetic Stirrer Type | Best Use | Main Advantage |
|---|---|---|
Basic magnetic stirrer | Routine mixing | Simple operation |
Digital magnetic stirrer | Documented methods | Precise RPM control |
Hotplate magnetic stirrer | Heated processes | Mixing and heating |
Multi-position magnetic stirrer | Parallel samples | Higher throughput |

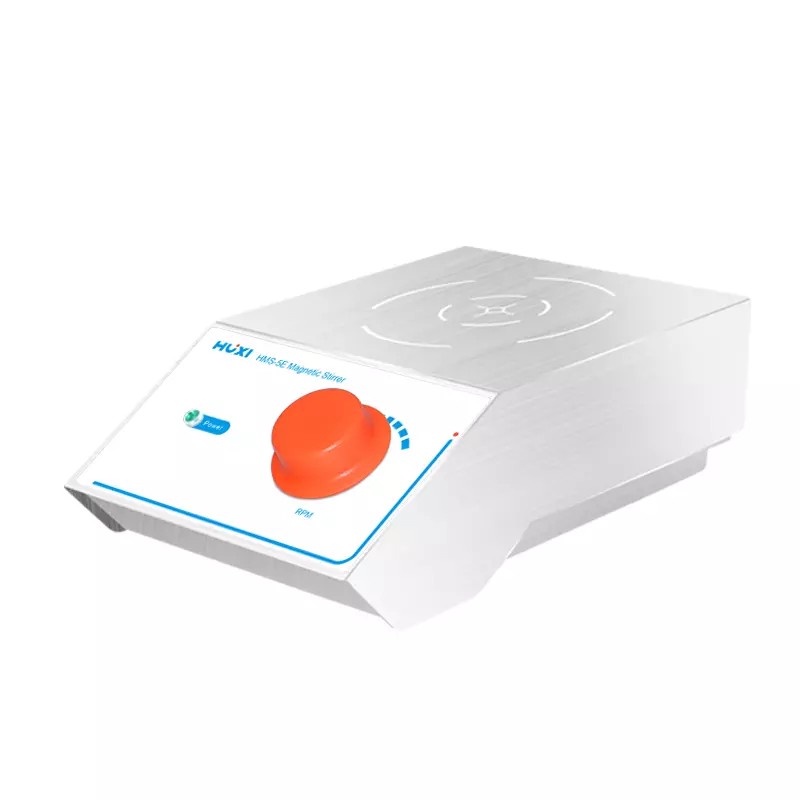

A basic model is suitable for mixing without heat.
It works well for:
Buffers
Reagents
Dilutions
Routine sample preparation
Low-viscosity liquids
It is usually simple to operate and maintain.

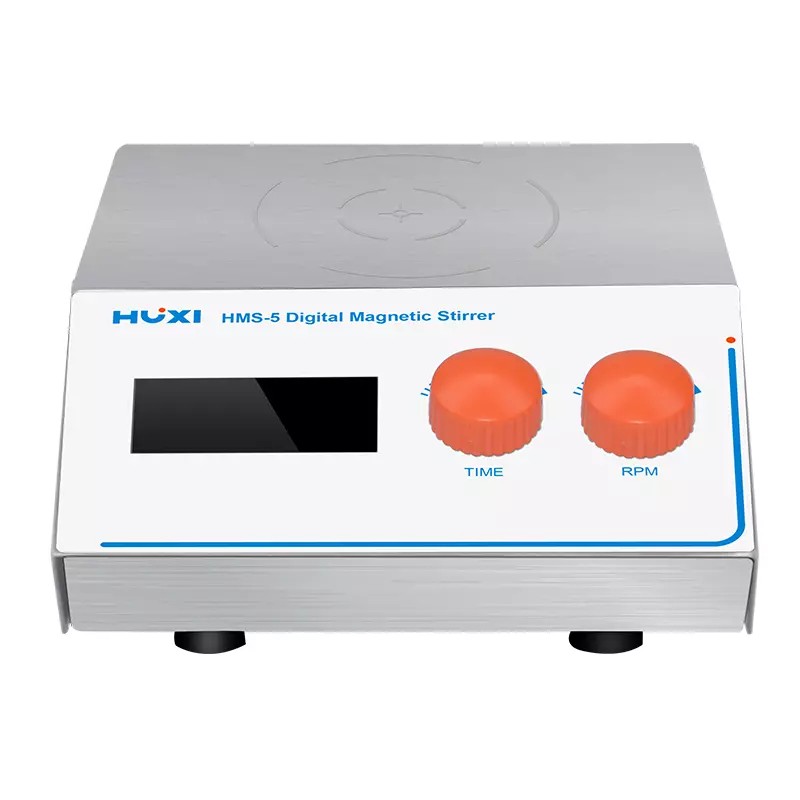

A digital model is useful when repeatability matters.
It may provide:
RPM display
Timer functions
Soft-start operation
Programmable settings
Temperature displays
More precise control
This type is suitable for documented procedures and quality control work.
A hotplate model suits heated dissolution and chemical reactions.
It may also support an external temperature probe.
Laboratories should compare heating range, temperature accuracy, top plate material, and safety functions.
A multi-position unit is designed for parallel samples.
It can improve throughput in:
Quality control testing
Batch preparation
Comparative experiments
Repeated formulation work
Buyers should confirm whether the positions have shared or independent speed controls.
Magnetic stirring has practical limits.
The user should select another mixing method when the sample exceeds these limits.
Thick liquids create strong resistance.
This may cause the stir bar to slow, wobble, or stop.
Use an overhead stirrer when greater torque is required.
Larger volumes increase the mixing load.
The stated maximum capacity may be based on water.
A viscous sample may exceed the practical limit at a much lower volume.
The selected model should be rated for the actual sample.
Dense particles can block the stir bar or settle faster than the liquid can circulate.
Mechanical agitation may be more effective.
A stronger motor cannot always overcome poor vessel or stir bar selection.
Laboratory magnetic stirring may not represent production-scale mixing.
Industrial batches often use direct-drive impellers.
An overhead or industrial mixer may provide more realistic scale-up conditions.
The correct mixer depends on the sample and process.
Manual stirring suits quick and simple tasks.
However, stirring speed and force vary between operators.
A magnetic stirrer provides longer and more repeatable agitation.
It also reduces operator workload.
Factor | Magnetic Stirrer | Overhead Stirrer |
|---|---|---|
Best viscosity | Low to moderate | Moderate to high |
Typical volume | Small to moderate | Moderate to large |
Mixing torque | Limited | High |
Cleaning | Simple | More components |
Sealed-vessel use | Easy | More complex |
Scale-up suitability | Limited | Better |
A magnetic stirrer is more suitable for compact, low-viscosity laboratory work.
An overhead stirrer is better for thick samples, heavy suspensions, and larger batches.
A basic model provides mixing only.
A hotplate model adds controlled heating.
Choose a hotplate unit when heating improves dissolution, reaction control, or culture media preparation.
A basic unit may be more economical when heating is unnecessary.
A single-position model handles one vessel.
A multi-position model supports several samples.
The multi-position design may improve laboratory throughput.
However, buyers should confirm whether all positions share one speed setting or provide independent control.
A magnetic stirrer is commonly used for:
Buffer preparation
Reagent mixing
Solid dissolution
Sample dilution
Analytical preparation
Chemical synthesis
Heated mixing
Culture media preparation
Parallel sample processing
It is a suitable choice when:
The liquid has low or manageable viscosity
The volume fits the practical capacity
Repeatable speed control is required
Low contamination risk matters
The vessel may need to remain sealed
Heating may be required
Before selecting a model, compare:
Sample volume
Liquid viscosity
Speed range
Heating range
Stir bar compatibility
Vessel size
Control type
Number of positions
Safety features
A magnetic stirrer is most useful for routine solution preparation, sample homogenization, and controlled low-viscosity mixing.
HUXI provides magnetic stirrers for different laboratory mixing and heating requirements. Buyers should match the equipment to the real sample, vessel, viscosity, process, and required level of control.
A: A magnetic stirrer is used for preparing buffers, mixing reagents, dissolving solids, supporting titrations, homogenizing analytical samples, and maintaining uniform conditions during small-scale reactions. Some models also provide heating.
A: A magnetic stirrer for titration keeps the sample moving continuously while titrant is added. This helps the added reagent disperse quickly and evenly through the vessel, supporting more consistent endpoint detection.
A: A magnetic stirrer for culture media helps dissolve nutrients, powders, and other components evenly. Continuous agitation reduces clumping and may shorten preparation time before sterilization or use.
A: A hotplate magnetic stirrer is used when a sample requires heating and continuous mixing. Common applications include heated dissolution, culture media preparation, and temperature-controlled chemical reactions.
A: A basic magnetic stirrer is relatively affordable. Digital and hotplate models cost more because they provide added speed, timing, or heating controls. For laboratories that prepare solutions frequently, the higher initial cost may be offset by reduced manual work and better process repeatability.
A: Use a magnetic stirrer for low-viscosity liquids and small to moderate volumes. Choose an overhead stirrer for thick gels, heavy slurries, dense suspensions, and larger batches that require greater torque.
A: Yes. A magnetic stirrer for analytical chemistry can support standard preparation, sample dilution, reagent mixing, titration, pH testing, and liquid sample homogenization.
A: A magnetic stirrer for water sample testing can help mix reagents, prepare standards, homogenize liquid samples, and maintain light suspensions before analysis.
A: The stir bar may stop because of high liquid viscosity, poor vessel centering, excessive speed, or an unsuitable stir bar. Reduce the speed, recenter the vessel, and restart gradually.
