Reliable laboratory work depends on uniform liquid mixing.
When a sample is not mixed properly, its concentration may vary across the vessel. This can affect chemical reactions, instrument readings, and final test results.
A magnetic stirrer provides controlled and continuous laboratory mixing. It uses a rotating magnetic field to drive a coated stir bar inside the vessel. The stir bar circulates the liquid without requiring a mechanical shaft to enter the sample.
This contact-free mixing method is commonly used for:
Reagent preparation
Solution homogenization
Solid dissolution
Analytical sample preparation
Small-scale chemical reactions
Temperature-controlled mixing
A magnetic stirrer usually works best with small to moderate sample volumes. It is most effective for low-viscosity liquids. Some moderate-viscosity samples may also be suitable when the instrument provides enough magnetic torque.
Thick gels, creams, heavy suspensions, and high-viscosity polymers usually require an overhead stirrer or another high-torque mixing system.
For laboratories evaluating mixing equipment, HUXI provides magnetic stirrers for routine solution preparation, sample mixing, and temperature-controlled laboratory processes. Buyers should compare sample volume, liquid viscosity, speed range, heating requirements, and vessel compatibility before selecting a model.
This guide explains what a magnetic stirrer does, what it is used for, which samples it can mix, and when another laboratory mixing system may be more suitable.
The main purpose of a magnetic stirrer is to create steady liquid movement.
It helps laboratories mix samples more evenly and repeatably than manual stirring.
A magnetic stirrer creates a rotating magnetic field beneath the vessel.
The field drives a magnetic stir bar inside the liquid. As the bar rotates, it pushes the surrounding fluid and creates circular flow.
This movement reduces concentration differences within the vessel.
A controlled vortex often forms near the center. It moves liquid downward in the middle and upward near the vessel walls.
The goal is not to create the deepest possible vortex. Stable circulation matters more than maximum speed.
Excessive speed may introduce air, cause splashing, or make the stir bar lose magnetic coupling.
One common magnetic stirrer use in the laboratory is solid dissolution.
Continuous movement increases contact between solid particles and the surrounding liquid. This can help salts, powders, nutrients, acids, and bases dissolve more evenly.
Magnetic stirring may also:
Reduce clumping
Shorten preparation time
Improve solute distribution
Reduce manual effort
Support repeatable methods
The stirrer cannot make an insoluble material dissolve. Heavy particles may also remain at the bottom when the liquid flow is too weak.
The user must still select a suitable stir bar, vessel, and speed.
A magnetic stirrer can help keep a sample uniform during preparation or testing.
Continuous agitation prevents dissolved components from becoming concentrated in one area. It may also slow sedimentation in suitable suspensions.
This is useful when a sample must remain stable before:
Pipetting
Titration
Filtration
Instrument analysis
Reagent addition
Quality control testing
Solution homogenization improves repeatability because each collected portion is more likely to represent the full sample.
However, magnetic stirring is not ideal for heavy suspensions or rapidly settling solids. These materials may need stronger mechanical mixing.
Magnetic stirrer applications in chemistry often involve small-scale reactions.
Stirring brings reactants into regular contact. It reduces local concentration differences and supports more uniform reaction conditions.
This can help during:
Chemical synthesis
Neutralization
Dilution
Extraction preparation
Buffer adjustment
pH control
Stirring may improve reaction consistency, but it does not replace proper temperature, timing, or chemical control.
Users must still follow the approved laboratory method.
A hotplate magnetic stirrer combines heating and stirring.
The hotplate transfers heat into the vessel. The rotating stir bar then circulates the warmer liquid through the sample.
This movement can reduce local hot zones and improve temperature distribution.
It is useful for:
Dissolving temperature-sensitive solids
Preparing culture media
Supporting heated reactions
Warming reagents
Maintaining process temperature
The displayed plate temperature may not equal the actual sample temperature.
Vessel material, liquid volume, room conditions, and heat loss all affect the result. An external probe is useful when sample temperature must be controlled accurately.
A magnetic stirrer reduces the need for continuous manual stirring.
Users can set the speed and allow the instrument to maintain steady movement. Digital models may also provide timers, speed displays, soft-start control, or programmable functions.
This supports:
Longer mixing periods
Repeatable reagent preparation
Parallel laboratory tasks
Better process records
Reduced operator variation
The sample should still be monitored.
Users should watch for excessive heating, foaming, splashing, evaporation, or stir bar spinout.
Note: The purpose of a magnetic stirrer is to create controlled, continuous, and repeatable liquid movement.
A magnetic stirrer for sample preparation can support many routine laboratory procedures.
Reagent preparation often requires complete and uniform dissolution.
A magnetic stirrer can help prepare:
Buffers
Stock solutions
Diluted standards
Salt solutions
Acid and base solutions
Culture media
Laboratory reagents
It reduces manual work and maintains a steady mixing rate.
Analytical laboratories need uniform samples before measurement.
A magnetic stirrer can support:
Liquid sample homogenization
Standard preparation
Dilution
Titration
pH adjustment
Reagent addition
Light suspension maintenance
A well-mixed sample can improve test repeatability.
Chemical and pharmaceutical laboratories often use magnetic stirrers for small batches.
Common uses include:
Formulation development
Buffer preparation
Stability studies
Reaction support
Solvent blending
Research sample preparation
Quality control testing
The equipment is especially useful when the vessel must remain closed.
Magnetic stirring can provide gentle agitation for biological preparation.
It may help with:
Culture media preparation
Nutrient dissolution
Biological reagent mixing
Buffer preparation
Small-scale fermentation support
The stirring speed should remain suitable for sensitive materials.
Tip: Record RPM, vessel type, stir bar size, sample volume, and mixing time for repeatable laboratory methods.
Magnetic stirrer uses in the laboratory vary by industry and testing method.
Chemical laboratories use magnetic stirrers to:
Mix solvents
Prepare reagents
Dissolve compounds
Support synthesis
Assist titration
Maintain reaction uniformity
A hotplate model is useful when the process also needs heat.
These laboratories often need precise sample preparation.
Common applications include:
Formulation trials
Buffer preparation
Stability testing
Media preparation
Sample homogenization
Quality control analysis
Digital speed control can help improve process documentation.
Environmental laboratories may use magnetic stirrers for:
Water sample preparation
Reagent mixing
Extraction solution preparation
Soil suspension preparation
Pollution analysis
Standard preparation
The sample must remain representative during testing.
Food laboratories use magnetic stirring during:
Additive dissolution
Quality control preparation
Ingredient testing
Flavor solution mixing
Acidity analysis
Liquid sample homogenization
Thick sauces or heavy food suspensions may require an overhead stirrer.
Different models support different laboratory workflows.
Magnetic Stirrer Type | Main Function | Suitable Use |
|---|---|---|
Basic magnetic stirrer | Mixing only | Routine solution preparation |
Hotplate magnetic stirrer | Heating and mixing | Heated reactions and dissolution |
Digital magnetic stirrer | Precise speed control | Repeatable or documented methods |
Multi-position stirrer | Parallel mixing | High-throughput sample preparation |

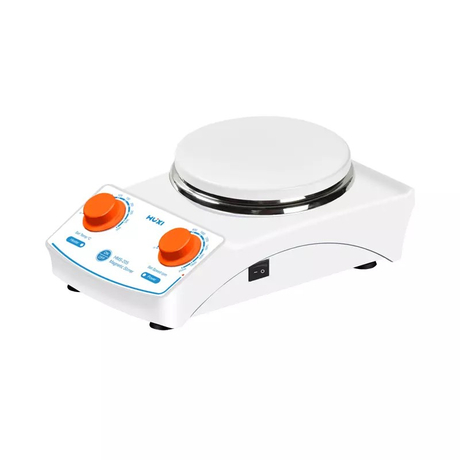

A basic model provides mixing without heating.
It is suitable for:
Buffer preparation
Reagent mixing
Routine dilution
General low-viscosity mixing
It is compact and easy to operate.
A hotplate model heats and mixes the sample at the same time.
It supports processes that require:
Faster dissolution
Controlled warming
Temperature-dependent reactions
Uniform heat distribution

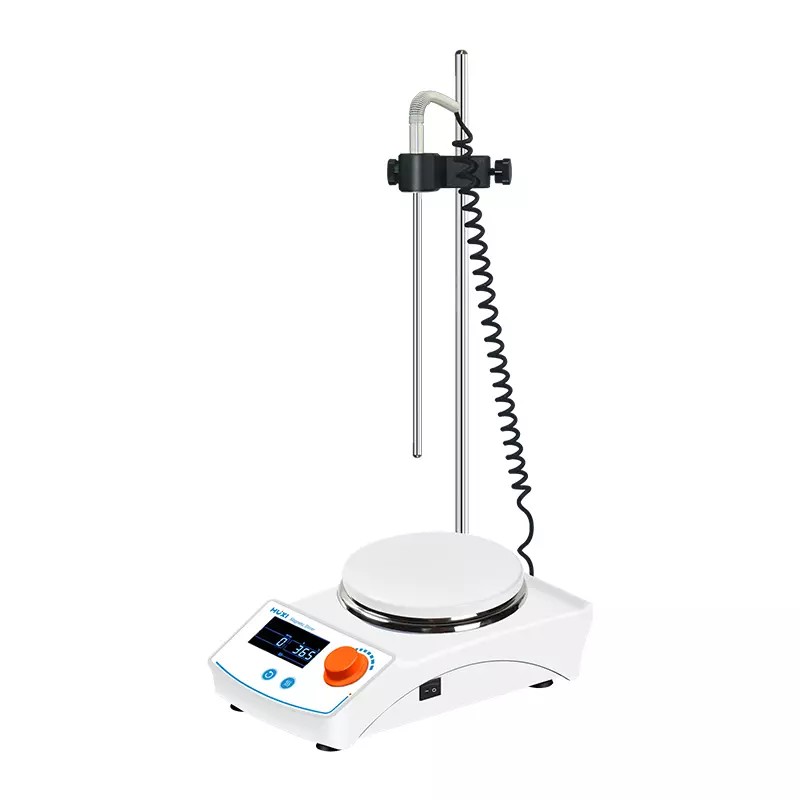

Some models accept an external temperature probe.
A digital model displays operating values.
It may provide:
Exact RPM settings
Timers
Soft-start control
Temperature displays
Programmable modes
This can improve repeatability and recordkeeping.
A multi-position model mixes several vessels at once.
It is useful for:
Parallel tests
Batch sample preparation
Quality control laboratories
Repeated formulation work
Some models use one shared speed. Others allow separate control for each position.
Why use a magnetic stirrer in a laboratory instead of manual mixing?
The main reasons involve consistency, cleanliness, and efficiency.
Manual stirring depends on the operator.
Speed, force, and duration may vary between users.
A magnetic stirrer provides:
Steady agitation
Defined RPM
Controlled mixing time
Lower operator variation
Better process repeatability
This is important for validated procedures and quality control work.
Only the coated stir bar contacts the sample.
No drive shaft or impeller enters the vessel.
This contact-free mixing design can:
Reduce contamination points
Support sealed-vessel operation
Simplify cleaning
Protect sensitive samples
The stir bar must still be cleaned correctly between uses.
Magnetic stirrers usually create less noise than many mechanical mixers.
They also require limited bench space.
This makes them useful in:
Small laboratories
Shared workstations
Teaching laboratories
Research benches
Quality control areas
The stir bar can be removed and cleaned separately.
The top plate is usually easy to wipe after use.
Magnetic stirrers also have fewer immersed components than overhead systems.
Routine inspection should still include:
Power cable condition
Control response
Top plate damage
Heating accuracy
Unusual noise
Stir bar wear
Tip: B2B buyers should prioritize sample compatibility, repeatability, and usable capacity instead of maximum RPM alone.
A magnetic stirrer is most suitable for liquids that do not create excessive resistance.
Common examples include:
Water-based solutions
Buffers
Solvents
Reagents
Diluted acids
Diluted bases
Culture media
These liquids allow the stir bar to rotate freely.
Some moderate-viscosity samples can be mixed successfully.
Performance depends on:
Magnetic torque
Stir bar strength
Vessel shape
Vessel-bottom thickness
Sample volume
Stirring speed
A stronger stir bar may improve performance. Lower speed may also help maintain coupling.
The setup should be tested before routine use.
A magnetic stirrer can help:
Dissolve powders
Dissolve salts
Maintain light suspensions
Prepare uniform analytical samples
Reduce mild sedimentation
It may not keep heavy particles suspended for long periods.
A magnetic stirrer may not be suitable for:
Thick gels
Heavy slurries
Creams
High-viscosity polymers
Dense suspensions
Large production batches
These samples often require an overhead stirrer or another mechanical mixing system.
Note: A sample can remain below the stated volume limit and still exceed the practical capacity because of viscosity.
The best mixer depends on the sample and process.
Mixing Method | Best For | Main Limitation |
|---|---|---|
Manual stirring | Quick and simple tasks | Low repeatability |
Magnetic stirrer | Small low-viscosity samples | Limited torque |
Overhead stirrer | Thick or large-volume samples | More cleaning |
Hotplate stirrer | Heated liquid mixing | Higher cost |
Multi-position stirrer | Parallel sample preparation | More bench space |
Manual stirring is useful for quick work.
However, it is difficult to maintain constant speed and force.
A magnetic stirrer offers longer and more repeatable mixing. It also allows the user to perform other laboratory tasks.
A magnetic stirrer uses magnetic coupling.
An overhead stirrer uses a motor-driven shaft and impeller.
Choose a magnetic stirrer for:
Lower-viscosity samples
Smaller volumes
Sealed vessels
Simple cleaning
Quiet operation
Choose an overhead stirrer for:
Thick liquids
Heavy suspensions
Large batches
High-torque mixing
Production scale-up
A basic magnetic stirrer provides mixing only.
A hotplate model adds heating.
The hotplate version is useful when temperature improves dissolution or supports a reaction.
A basic unit may be more economical when heating is not needed.
A single-position model handles one vessel at a time.
A multi-position model supports parallel workflows.
It can improve throughput in quality control and sample preparation laboratories.
However, users should confirm whether each position has independent speed control.
What does a magnetic stirrer do?
It performs several core laboratory functions:
Mixes liquids uniformly
Dissolves solids
Maintains sample homogeneity
Improves reactant contact
Distributes heat
Automates repetitive mixing
A magnetic stirrer is a suitable choice when:
The sample has low or manageable viscosity
The required volume fits the rated capacity
Repeatable speed control is important
The vessel must remain sealed
Low contamination risk is required
Heating may be needed
Before selecting a model, compare:
Maximum stirring volume
Sample viscosity
Speed range
Heating range
Stir bar compatibility
Top plate material
Digital or analog controls
Single- or multi-position operation
A properly selected magnetic stirrer improves liquid uniformity, workflow efficiency, and test repeatability.
HUXI supplies laboratory mixing equipment for different sample preparation and heating requirements. Buyers should match the instrument to the liquid, vessel, stir bar, speed range, and intended laboratory process.
A: A magnetic stirrer creates uniform liquid movement by rotating a magnetic stir bar inside a vessel. It supports solid dissolution, solution homogenization, reagent preparation, and heat distribution without requiring a mechanical shaft to enter the sample.
A: A magnetic stirrer is commonly used for preparing buffers, mixing reagents, dissolving salts, supporting titrations, homogenizing analytical samples, and maintaining uniform conditions during small-scale chemical reactions. Hotplate models can also heat the sample during mixing.
A: A magnetic stirrer provides longer, steadier, and more repeatable mixing than manual stirring. It reduces operator workload and variation between users. It can also lower contamination risk because only the coated stir bar contacts the liquid.
A: A magnetic stirrer works best with low-viscosity liquids such as water-based solutions, buffers, solvents, diluted acids, diluted bases, and laboratory reagents. Some moderate-viscosity samples may also work. Thick gels, creams, heavy slurries, and high-viscosity polymers usually require an overhead stirrer.
A: A magnetic stirrer can help maintain light suspensions and reduce mild sedimentation. Its performance depends on particle size, density, liquid viscosity, stir bar selection, and stirring speed. Heavy or rapidly settling particles may require a stronger mechanical mixing system.
A: A hotplate magnetic stirrer can heat and mix a sample simultaneously. Stirring helps distribute heat through the liquid and may reduce local hot zones. However, the plate temperature may differ from the actual sample temperature, so an external probe may be needed.
A: A magnetic stirrer has a higher initial cost than manual stirring. However, laboratories that prepare solutions frequently may offset this cost through lower labor input, more repeatable procedures, and improved workflow efficiency.
A: Contact-free mixing allows the drive system to remain outside the sample vessel. Only the coated magnetic stir bar touches the liquid. This can simplify cleaning, support sealed-vessel operation, and reduce potential contamination points.
A: The magnetic stir bar may stop because the speed is too high, the vessel is off-center, the liquid is too viscous, or the stir bar is unsuitable for the sample volume. Reduce the speed, recenter the vessel, and restart gradually.
A: A magnetic stirrer is usually better for small to moderate volumes of low-viscosity liquid. It is compact, quiet, and easy to clean. An overhead stirrer is more suitable for thick liquids, heavy suspensions, large batches, and processes that require greater torque.
