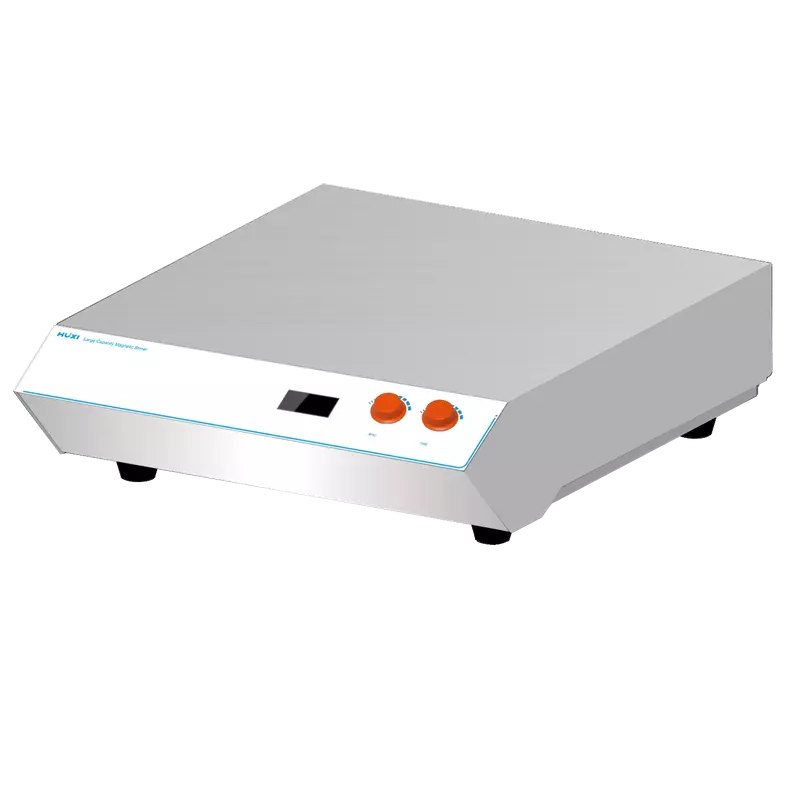

A magnetic stirrer provides steady and repeatable liquid mixing. It is commonly used for preparing buffers, dissolving solids, mixing reagents, and supporting laboratory reactions.
Correct operation matters because poor setup can cause:
Weak liquid circulation
Unstable vortex formation
Stir bar spinout
Excessive operating noise
Sample splashing
Uneven heating
Inconsistent test results
The vessel, stir bar, stirring speed, and sample must work as one complete system.
A magnetic stirrer is most suitable for low-viscosity liquids. Some moderate-viscosity samples may also work when the instrument provides enough magnetic torque.
Thick gels, creams, polymers, and heavy suspensions usually require an overhead stirrer.
This guide presents a complete magnetic stirrer operating procedure. It covers equipment inspection, sample preparation, vessel centering, speed control, hotplate operation, shutdown, cleaning, and troubleshooting.

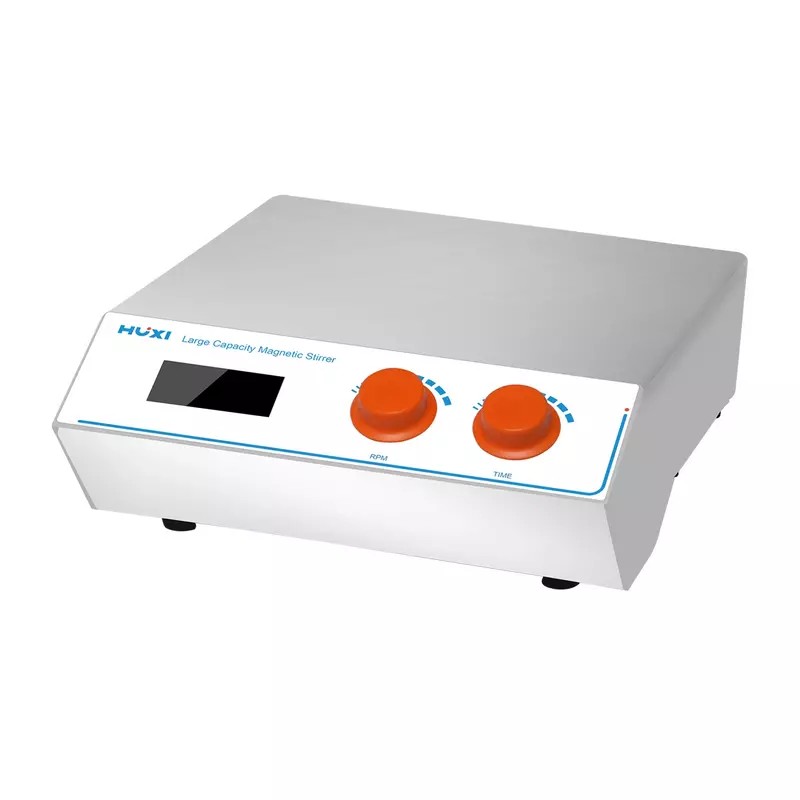

HUXI supplies magnetic stirrers for routine mixing, sample preparation, and temperature-controlled laboratory processes.
The following magnetic stirrer setup instructions apply to most standard laboratory models.
Always review the manufacturer’s operating manual before starting.
Place the instrument on a stable and level laboratory bench.
The work surface should be dry, clean, and resistant to the chemicals used in the process.
Inspect the following parts:
Power cable
Electrical plug
Control knobs
Digital display
Top plate
Equipment housing
Temperature probe
Do not operate the instrument when its cable is damaged, the housing is wet, or chemical residue has entered the controls.
Check the model specifications before use. Confirm its:
Maximum stirring volume
Available speed range
Maximum plate temperature
Permitted vessel size
Operating environment
Heating and timing functions
A sample may exceed the practical capacity even when its volume remains below the stated maximum. Higher viscosity creates more resistance and requires greater torque.
Note: Rated stirring capacity often refers to water or another low-viscosity liquid.
Proper sample preparation improves mixing stability and reduces spill risks.
Choose clean laboratory glassware that is chemically compatible with the sample.
Use a non-magnetic vessel. Magnetic metals may interfere with the rotating magnetic field.
Flat-bottom beakers and flasks usually provide stronger magnetic coupling. They keep the stir bar close to the drive magnet beneath the plate.
Inspect the vessel for:
Cracks
Chips
Heat damage
Chemical residue
Unstable bases
Surface contamination
Leave enough empty space above the liquid.
This headspace reduces the risk of overflow during vortex formation. Avoid filling the vessel close to its rim because heating, foaming, or rapid stirring may raise the liquid level.
Stir bar selection affects mixing strength, stability, and noise.
Stir Bar Type | Suitable Vessel or Process |
|---|---|
Cylindrical | Flat-bottom beakers |
Oval | Round-bottom flasks |
Pivot-ring | Slightly uneven vessel bottoms |
Triangular | Samples containing settled solids |
Micro bar | Test tubes and small vessels |
A stir bar that is too small may produce weak circulation.
An oversized bar may strike the vessel wall. It may also cause rattling, unstable rotation, or magnetic decoupling.
Larger sample volumes often require a longer or stronger stir bar. However, it must still rotate freely across the vessel bottom.
Most routine laboratory stir bars have a PTFE coating. This material offers good resistance to many common chemicals.
Inspect the stir bar before use. Replace it when its coating is:
Cracked
Deeply scratched
Worn
Swollen
Permanently stained
Separating from the magnetic core
Place the stir bar inside the liquid before starting the instrument.
Do not drop it from excessive height into fragile glassware. Lower it carefully or guide it down the vessel wall.
Note: Stir bar size should match the vessel shape, sample volume, viscosity, and required mixing force.
Vessel centering is essential for stable magnetic coupling.
Place the beaker directly above the drive magnet. The magnetic field is usually strongest near the center of the top plate.
To center a beaker on a magnetic stirrer:
Place the vessel near the center of the plate.
Set the stirrer to a very low speed.
Watch the stir bar begin to align.
Move the vessel slightly when needed.
Stop adjusting when the bar rotates smoothly.
Keep the vessel upright and stable.
Do not place several vessels on a single-position stirrer. They may receive weak or uneven magnetic force.
Use a support stand when a temperature probe, condenser, or other accessory may pull the vessel away from the center.
Turn on the magnetic stirrer at its lowest practical setting.
Wait until the stir bar rotates smoothly before increasing the speed.
Raise the RPM in small steps.
Sudden acceleration may cause the rotating magnetic field to move faster than the stir bar can follow. The bar may then jump, wobble, strike the vessel, or stop rotating.
This failure is called magnetic decoupling or spinout.
Reduce the speed immediately when the bar becomes unstable.
Do not allow it to strike the glass repeatedly. Constant impact may damage the vessel or wear through the stir bar coating.
Observe the sample throughout the process.
Check the:
Vortex depth
Stir bar movement
Liquid circulation
Solid dissolution
Sample temperature
Foam level
Splashing risk
Material remaining at the bottom
A shallow vortex is often enough to provide uniform mixing.
A deep vortex may pull air into the sample. It can increase foaming, oxidation, evaporation, and splashing.
Use only enough speed to keep the sample moving evenly.
The required RPM may change during mixing. Solids may dissolve, while heated liquids may become less viscous.
For validated laboratory work, follow a defined mixing time instead of relying only on visual appearance.
Reduce the RPM before stopping the motor.
Turn off the heating function when it has been used.
Wait until the stir bar stops moving completely.
Allow the vessel and top plate to cool when necessary.
Remove hot glassware using suitable heat-resistant protection.
Disconnect the instrument from power before cleaning, inspection, maintenance, or long-term storage.
Tip: Record the vessel, stir bar, sample volume, RPM, temperature, and mixing time for repeatable laboratory procedures.
The complete mixing setup determines actual performance.
A powerful magnetic stirrer may still perform poorly when the vessel or stir bar is unsuitable.
Use chemically compatible and non-magnetic vessels.
Flat-bottom glassware usually improves magnetic coupling because it keeps the stir bar close to the internal drive magnet.
A thick, raised, or curved base increases the gap between the magnets. This weakens the available magnetic force.
Avoid unstable containers that may:
Slide
Rock
Tilt
Spill
Move off-center
The vessel should fit within the usable top plate surface.
Use a cylindrical bar for many flat-bottom beakers.
Use an oval bar for round-bottom flasks. Its shape allows it to follow the curved surface more smoothly.
Use a pivot-ring bar when the vessel base is slightly uneven.
A triangular stir bar may help move settled solids from the vessel bottom.
Do not assume that one stir bar will suit every vessel and sample.
A larger sample volume creates greater resistance.
Higher viscosity also increases the load on the magnetic coupling.
An undersized bar may create weak liquid movement.
An oversized bar may strike the vessel wall and lose stability.
Test more than one size when developing a repeatable procedure.
When the stir bar repeatedly stops, consider:
Lowering the RPM
Reducing the sample volume
Using a stronger stir bar
Using a more powerful stirrer
Choosing a flatter vessel
Switching to an overhead stirrer
PTFE-coated stir bars suit many routine laboratory chemicals.
However, no coating is suitable for every chemical or temperature.
Check the supplier’s chemical resistance and operating temperature data before use.
Do not use a stir bar with:
Cracked coating
Exposed magnetic material
Deep scratches
Chemical swelling
Severe staining
Visible deformation
Damaged bars may contaminate the sample or rotate unevenly.
Note: Stir bar selection directly affects magnetic coupling, vortex stability, and liquid uniformity.
The best stirring speed is not always the highest available speed.
The correct setting provides uniform mixing without splashing, spinout, excessive air intake, or sample damage.
Start slowly so the stir bar can align with the rotating magnetic field.
Wait for stable rotation before increasing the speed.
Do not begin at the final target RPM.
Use a soft-start function when the magnetic stirrer provides one.
Use gentle stirring for:
Biological samples
Foaming solutions
Small sample volumes
Air-sensitive liquids
Slow dissolution
Samples vulnerable to oxidation
Use moderate stirring for:
Reagent preparation
Buffer preparation
Routine titration
Salt dissolution
General sample mixing
Increase the speed carefully for larger low-viscosity volumes.
Reduce it when the vortex begins pulling air into the sample.
A stable, shallow vortex often indicates adequate circulation.
A very deep vortex may create unnecessary turbulence.
To prevent splashing during magnetic stirring:
Reduce the RPM
Use a larger vessel
Leave more headspace
Select a gentler stir bar shape
Confirm that the vessel is centered
Use a splash shield when necessary
Do not judge mixing quality only by vortex depth.
Check whether solids remain at the bottom or concentration differences remain visible within the vessel.
Digital stirrers allow users to record exact RPM values.
Analog controls may be suitable for basic work, but knob positions are less precise and harder to reproduce.
For repeatable procedures, record the:
Stirring speed
Vessel type
Stir bar size
Sample volume
Mixing time
Sample temperature
Visual mixing condition
Revalidate the operating speed whenever the vessel, volume, viscosity, or stir bar changes.
Tip: Use the lowest RPM that provides stable and uniform liquid circulation.
A hotplate magnetic stirrer combines heating and liquid mixing in one instrument.
It can support dissolution, chemical reactions, sample preparation, and temperature-controlled laboratory work.
Confirm that the vessel can withstand the required temperature.
Check the maximum rating of the top plate.
Position the vessel and stir bar correctly before applying strong heat.
When the procedure permits, begin gentle stirring first. Then increase the temperature gradually.
Sudden heating may create:
Local boiling
Uneven temperatures
Sample degradation
Vessel stress
Unexpected splashing
Rapid solvent evaporation
The displayed plate temperature is not always equal to the liquid temperature.
Heat transfer depends on:
Vessel material
Vessel shape
Sample volume
Sample viscosity
Room temperature
Stirring speed
Heat loss
Use an external temperature probe when accurate sample control matters.
Position the probe away from the stir bar.
Secure it using a suitable clamp. Do not allow it to strike the stir bar or vessel bottom.
Allow enough time for the sample to reach thermal equilibrium before recording the temperature.
Leave enough headspace in the vessel.
Keep the vortex controlled.
Reduce the RPM if the liquid climbs too high along the vessel wall.
Reduce the heat when boiling becomes too vigorous.
Use a safety shield when the sample may splash.
Never heat a sealed vessel unless the procedure and equipment are specifically designed for pressure.
Keep unsuitable flammable materials away from hot electrical surfaces.
Turn off the heating function first.
Reduce the stirring speed gradually.
Stop the stirrer after the process is complete.
Check the hot-surface warning indicator when the model provides one.
Do not touch the plate immediately after shutdown.
Allow the plate and vessel to cool before cleaning or storage.
For simultaneous heating and stirring applications, laboratories can review HUXI’s hot plate magnetic stirrers.
Note: A hotplate may remain dangerously hot after its display or heating control has been switched off.
Many operating problems result from a setup mismatch rather than equipment failure.
Possible causes include:
Speed increased too quickly
Vessel placed off-center
Stir bar too small
Stir bar too large
Liquid too viscous
Sample volume too high
Vessel bottom too thick
Weak magnetic coupling
Stop the instrument.
Recenter the vessel and restart at a lower speed.
Try another stir bar when the problem continues.
A jumping stir bar may be too large for the vessel.
The vessel bottom may also be curved, raised, or uneven.
Check vessel centering and reduce the RPM.
Inspect the stir bar coating for damage.
Continuous rattling may affect mixing consistency and glassware safety.
Check whether the vessel sits directly above the drive center.
Try a longer or stronger stir bar.
Confirm that the sample remains within the instrument’s practical capacity.
High-viscosity liquids may require an overhead stirrer.
Do not increase speed indefinitely. Higher RPM cannot always overcome insufficient torque.
Excessive speed is a common cause.
Use a larger vessel and leave more headspace.
Reduce the vortex depth.
Choose a stir bar that creates less turbulence.
Use gentler mixing for biological samples, air-sensitive liquids, and foaming solutions.
Tip: Stop, recenter, and restart slowly before assuming that the magnetic stirrer is defective.
Correct cleaning prevents cross-contamination and helps extend equipment life.
Stop the stirrer completely.
Allow heated samples to cool when necessary.
Use a PTFE-coated stir bar retriever.
A stir bar retriever allows the bar to be removed without reaching into the sample.
It is especially useful for:
Corrosive liquids
Irritating chemicals
Hot solutions
Narrow-neck vessels
Contamination-sensitive samples
Avoid removing a stir bar by hand from hazardous liquids.
Rinse the stir bar using a compatible cleaning method.
Remove residues before they dry.
Disinfect or sterilize it when the procedure requires it.
Inspect the coating after cleaning.
Store the bar in a clean and dry container.
Keep strong magnetic bars apart when the supplier recommends separate storage.
Disconnect the instrument from power.
Allow the top plate to cool.
Wipe the plate and housing using a soft cloth and suitable cleaner.
Do not:
Immerse the instrument
Spray liquid into ventilation openings
Use abrasive pads
Apply incompatible solvents
Allow residue to enter the controls
Clean spills as soon as it is safe.
Dried chemical residue may damage the surface or affect future samples.
Inspect the:
Power cable
Controls
Top plate
Display
Temperature probe
Stirring performance
Heating response
Equipment housing
Watch for unusual noise, vibration, heat, or odor.
Store the instrument in a dry and ventilated area.
For hotplate models, verify temperature performance according to the laboratory’s calibration schedule.
Tip: A cleaning and inspection log can identify wear before it affects sample quality.
A safe magnetic stirrer operating procedure follows a clear sequence:
Inspect the equipment.
Check the glassware.
Prepare the sample.
Select the correct stir bar.
Center the vessel.
Start at a low RPM.
Increase speed gradually.
Monitor the vortex.
Stop before removing the vessel.
Clean the equipment after use.
Safe and consistent mixing also requires users to:
Stay within the instrument’s volume limits
Consider sample viscosity
Use non-magnetic glassware
Avoid sudden speed changes
Monitor the actual sample temperature
Prevent excessive vortex depth
Replace damaged stir bars
Use an overhead stirrer when more torque is needed
Laboratory buyers should compare:
Selection Factor | Why It Matters |
|---|---|
Maximum stirring volume | Defines practical sample capacity |
Speed range | Supports gentle and vigorous mixing |
Control accuracy | Improves repeatability |
Heating range | Determines thermal applications |
Plate material | Affects durability and chemical resistance |
Stir bar compatibility | Influences magnetic coupling |
Timer function | Supports controlled operation |
Safety features | Reduces operating risk |
Position count | Determines sample throughput |
A correctly operated magnetic stirrer provides stable mixing, lower contamination risk, and better process repeatability.
HUXI provides magnetic stirrers for different sample volumes, speed ranges, heating requirements, and laboratory workflows. Laboratory buyers can explore the full range of HUXI magnetic stirrers before selecting a suitable model.
A: Inspect the equipment first. Select a compatible vessel and stir bar, center the vessel on the plate, and begin at a low speed. Increase the RPM gradually until stable circulation forms.
A: Keep the magnetic stirrer and work area dry. Use stable, non-magnetic glassware and confirm that the vessel is centered. Avoid sudden speed changes and never lift the vessel while it is rotating at high speed.
A: Begin stirring at a low speed before applying strong heat. Increase the temperature gradually and monitor the actual sample temperature using an external probe when accuracy matters.
A: The stir bar may stop because of poor vessel centering, excessive speed, weak coupling, high liquid viscosity, or an unsuitable stir bar. Reduce the speed, recenter the vessel, and restart slowly.
A: Reduce the RPM, leave more headspace, and use a larger vessel when necessary. Maintain a shallow vortex and use a splash shield for samples that may foam or boil.
A: Stop the stirrer and allow heated samples to cool. Use a PTFE-coated stir bar retriever instead of reaching into hot, corrosive, or contamination-sensitive liquids.
A: A digital model is often worthwhile for quality control, validated methods, and repeatable batch preparation. It can provide exact RPM settings, timers, soft-start functions, and clearer operating records.
