Consistent liquid mixing is essential in laboratory work. Poor mixing can create uneven concentrations, unstable reactions, and unreliable test results.
Manual stirring may be enough for quick, simple tasks. However, it depends heavily on the operator. Stirring speed, duration, and force may vary between batches.
A magnetic stirrer provides automated, contact-free mixing. It uses a rotating magnetic field to move a small magnetic stir bar inside the vessel. No mechanical shaft needs to enter the sample.
This design offers several practical benefits:
More consistent liquid mixing
Lower contamination risk
Easier sealed-vessel operation
Reduced operator workload
Better process repeatability
Quiet benchtop operation
Simple cleaning and maintenance
Magnetic stirrers work best with low-viscosity and some moderate-viscosity liquids. Common examples include water-based solutions, buffers, reagents, solvents, and laboratory samples.
Thick gels, creams, polymers, and heavy slurries usually require an overhead stirrer because they place greater resistance on the mixing system.
This guide explains the magnetic stirrer working principle. It also covers stir bar selection, vessel setup, stirring speed, vortex formation, heating, troubleshooting, and equipment selection.
A magnetic stirrer uses two connected systems.
The first system creates a rotating magnetic field beneath the top plate. The second system transfers that motion into the liquid through a magnetic stir bar.
A drive system sits below the stir plate.
Many magnetic stirrers use a small electric motor. The motor rotates one or more permanent magnets beneath the plate.
Other models use stationary electromagnetic coils. These coils activate in sequence and create a rotating magnetic field without physically rotating a drive magnet.
Both systems perform the same main function: they generate a controlled magnetic field beneath the vessel.
The field passes through the non-magnetic top plate and vessel bottom. It then reaches the magnetic stir bar inside the liquid.
A motor-driven permanent magnet is simple and cost-effective. An electromagnetic drive may offer smoother speed control, lower vibration, and less mechanical wear.
A magnetic stir bar contains a permanent magnetic core. Most laboratory stir bars have a chemically resistant PTFE coating.
When the vessel is placed above the drive system, the stir bar aligns with the magnetic field.
As the field rotates, the stir bar follows it. This interaction is known as magnetic coupling.
The strength of this coupling depends on:
Drive magnet strength
Stir bar magnetic strength
Distance between both magnets
Vessel-bottom thickness
Stir bar size and shape
Liquid volume
Sample viscosity
A thin, flat vessel bottom usually creates stronger magnetic coupling. A thick, raised, or curved bottom increases the distance between the magnets and weakens the connection.
The rotating stir bar pushes the surrounding liquid.
Friction between the stir bar and the sample creates circular movement. This motion spreads outward from the bottom of the vessel.
A centered stir bar produces smooth and stable circulation. A wobbling or off-center bar creates uneven flow and may strike the vessel walls.
Sample viscosity also affects performance.
Low-viscosity liquids move easily and require less torque. More viscous liquids resist the movement of the stir bar and place a greater load on the magnetic coupling.
Vortex formation is the most visible result of magnetic stirring.
The liquid moves downward near the center of the vessel. It then travels outward along the bottom and rises near the walls.
This continuous circulation helps distribute:
Dissolved substances
Added reagents
Suspended particles
Heat
Concentration differences
A deeper vortex usually indicates stronger liquid circulation. However, a deep vortex does not always mean better mixing.
Excessive vortex formation may:
Pull air into the sample
Cause foaming
Increase oxidation
Create splashing
Damage sensitive biological materials
Many routine laboratory processes need only a shallow or moderate vortex.
The speed knob or digital control changes how quickly the magnetic field rotates.
Higher stirring speed usually increases circulation and vortex depth.
However, speed should not be increased too quickly.
Rapid acceleration can cause the rotating magnetic field to move faster than the stir bar can follow. The stir bar then loses magnetic coupling.
This condition is called stir bar decoupling or spinout.
To prevent it:
Start at a low speed.
Wait for stable stir bar rotation.
Increase the RPM gradually.
Stop if the bar begins jumping or rattling.
Continuous circulation reduces concentration differences throughout the vessel.
Magnetic stirring supports processes such as:
Dissolving salts
Preparing buffers
Diluting solutions
Mixing reagents
Supporting titrations
Distributing heat
Controlling chemical reactions
Mixing time depends on the:
Sample volume
Liquid viscosity
Vessel shape
Stir bar size
Stirring speed
Required level of uniformity
Some processes can be assessed visually. Others require a defined mixing time, pH result, conductivity reading, temperature value, or validated laboratory method.
Note: Stable stir bar rotation is more important than reaching the highest possible RPM.
A typical magnetic stirrer contains four main systems.
The drive system produces the rotating magnetic field.
A stronger magnetic field can support greater liquid resistance and larger sample volumes. However, performance also depends on the stir bar, vessel, and sample properties.
Motor-driven systems contain rotating mechanical parts. Electromagnetic designs may reduce vibration and mechanical wear.
The stir plate supports the vessel and separates it from the drive system.
Common top plate materials include ceramic, aluminum, and stainless steel.
Plate material | Main advantage | Common limitation |
|---|---|---|
Ceramic | Strong chemical resistance | May chip or crack |
Aluminum | Even heat distribution | Lower corrosion resistance |
Stainless steel | Durable and robust | Heating performance varies by design |
Plate material becomes especially important when using a hotplate magnetic stirrer.
The surface should be selected according to:
Chemicals used
Required temperature
Vessel type
Cleaning method
Mechanical workload
The stir bar is the only moving component inside the liquid.
Common stir bar shapes include:
Cylindrical
Oval
Cross-shaped
Triangular
Pivot-ring
Micro stir bars
Cylindrical bars suit many flat-bottom vessels.
Oval bars often work better in round-bottom flasks because they follow the curved surface more smoothly.
Triangular bars can help lift settled material. Pivot-ring bars reduce contact and friction on slightly uneven vessel bottoms.
Analog magnetic stirrers use rotary knobs. They are simple and practical for routine laboratory work.
Digital models display the selected or actual RPM. Some models may also include:
Timers
Speed ramping
Direction reversal
Temperature controls
External probe connections
Safety alarms
Automatic shutdown
Digital control helps laboratories repeat and document operating conditions more accurately.
The stirrer itself does not determine the complete result. Mixing performance depends on the full setup.
A very small stir bar may create weak circulation.
A bar that is too large may strike the vessel walls, create noise, or lose stability.
Choose a stir bar that fits comfortably across the bottom of the vessel.
The correct size depends on:
Vessel diameter
Vessel-bottom shape
Sample volume
Liquid viscosity
Drive magnet strength
Required stirring speed
For critical processes, test several stir bar sizes and shapes before approving the method.
Use a non-magnetic vessel that is compatible with the sample.
Flat-bottom laboratory glassware often produces the most stable stirring. It keeps the magnetic stir bar close to the drive magnet.
Place the vessel in the center of the stir plate. The magnetic field is usually strongest near the center of the drive system.
An off-center vessel may cause:
Wobbling
Rattling
Weak liquid circulation
Repeated decoupling
Unstable vortex formation
The vessel should also have enough headspace. High stirring speeds can push the liquid upward and cause spills.
Larger sample volumes require greater magnetic torque.
Higher viscosity increases drag on the stir bar. The bar may slow down, wobble, or stop rotating.
Magnetic stirrers are most effective for water-like liquids and other low-viscosity samples.
Some moderate-viscosity liquids may also be stirred when the setup includes:
A stronger magnetic drive
A suitable high-strength stir bar
A properly shaped vessel
A lower operating speed
A manageable sample volume
Use an overhead stirrer when the liquid remains too resistant.
There is no single correct stirring speed for every process.
A gentle speed may suit:
Sensitive biological samples
Slow dissolution
Small sample volumes
Air-sensitive liquids
Processes vulnerable to foaming
A higher speed may suit:
Reagent preparation
Routine dissolution
Titration mixing
Larger low-viscosity volumes
Use only enough speed to create uniform circulation.
Tip: Record the vessel, stir bar, sample volume, viscosity, and RPM for every approved laboratory method.
Correct setup improves mixing stability and reduces the risk of stir bar decoupling.
Choose clean and chemically compatible laboratory glassware.
Make sure the vessel has enough free space above the liquid. This reduces the risk of splashing during vortex formation.
Place the magnetic stir bar inside the vessel before starting the stirrer.
Confirm that the bar rests freely on the bottom. It should not be trapped beneath solids or blocked by internal fittings.
Place the vessel in the center of the top plate.
The stir bar should align with the drive magnet below.
Do not place multiple vessels on a single-position magnetic stirrer. They may receive weak or uneven magnetic force.
Use the stirrer on a level and stable work surface.
Turn the magnetic stirrer on at a low setting.
Watch the stir bar until it begins rotating smoothly.
Increase the speed gradually. Avoid sudden changes.
If the stir bar jumps or rattles:
Reduce the speed.
Stop the stirrer.
Allow the bar to settle.
Recenter the vessel.
Restart at a lower speed.
This is the safest way to set magnetic stirrer speed.
Observe the sample during operation.
Check for:
Stable vortex formation
Smooth stir bar rotation
Splashing
Foaming
Excessive air intake
Settled solids
Changes in viscosity
Changes in temperature
The required speed may change as solids dissolve or the sample becomes warmer.
Stop the stirrer before removing the vessel.
Note: Never lift glassware from a magnetic stirrer operating at high speed.

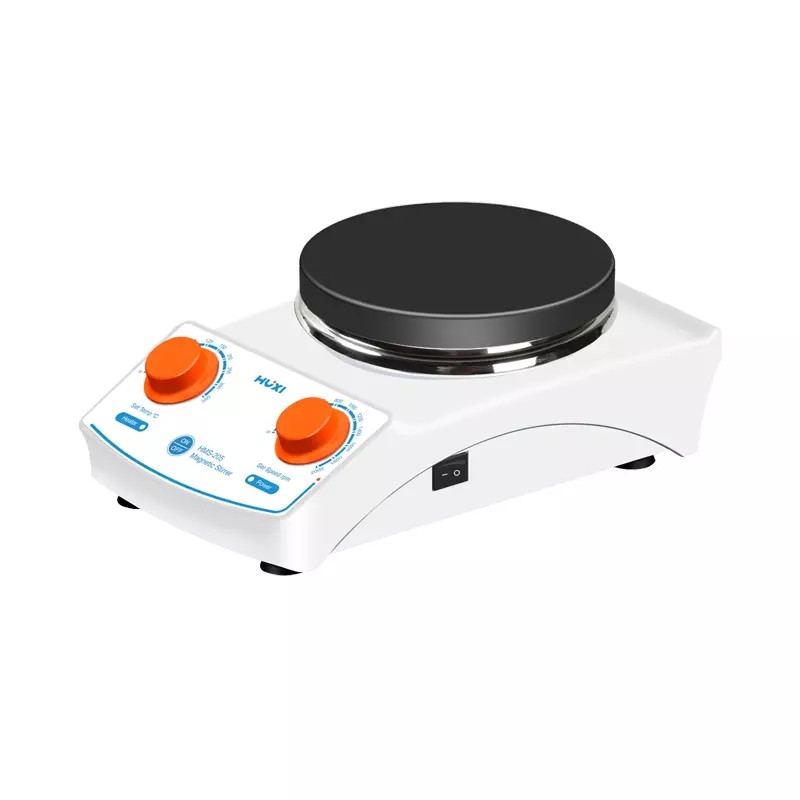

A hotplate magnetic stirrer combines heating and liquid mixing in one instrument.
A heating element warms the top plate.
Heat then passes through the vessel and into the sample. The rotating stir bar distributes the warmer liquid throughout the container.
This circulation can reduce local hot spots and support more uniform heating.
Heating may also:
Improve dissolution
Increase reaction rates
Support temperature-controlled processes
Reduce concentration gradients
The plate temperature is not always the same as the sample temperature.
Heat transfer depends on:
Vessel material
Vessel shape
Liquid volume
Sample viscosity
Stirring speed
Room conditions
Heat loss from the vessel
The plate may reach its selected temperature before the liquid reaches the target value.

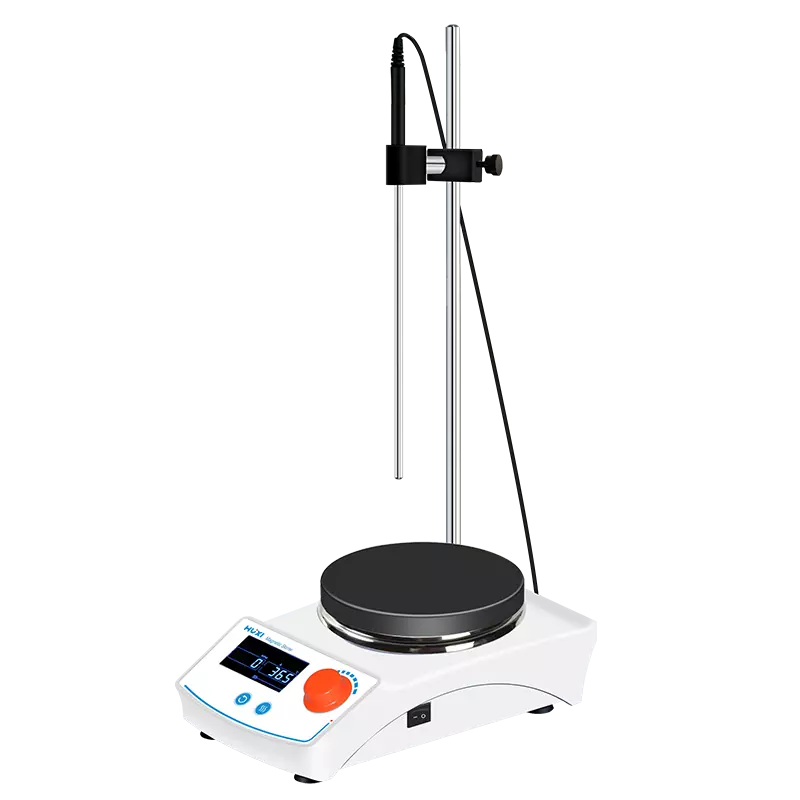

Use an external temperature probe when actual sample temperature is important.
Ceramic plates offer strong resistance to many chemicals. They are also easy to clean.
Aluminum plates often provide more even heat distribution.
Stainless-steel surfaces offer high durability and good mechanical resistance.
The right option depends on the laboratory process, chemicals, operating temperature, and vessel type.
Increase the temperature gradually.
Use heat-resistant laboratory glassware.
Keep unsuitable flammable materials away from hot electrical equipment.
Do not touch the plate immediately after shutdown. It may remain hot for an extended period.
Allow the top plate to cool before cleaning.
Tip: For validated processes, measure the sample temperature rather than relying only on the hotplate display.
A stopped, jumping, or rattling stir bar usually indicates weak magnetic coupling or excessive sample resistance.
Rapid acceleration can cause the rotating magnetic field to outrun the stir bar.
Stop the stirrer. Allow the bar to return to the center. Restart at a low speed.
Some digital magnetic stirrers use soft-start control to prevent stir bar decoupling.
Magnetic field strength usually decreases away from the drive center.
Move the vessel to the middle of the top plate.
Also check whether the stirrer stands level. An uneven surface may cause the vessel to move during operation.
A straight cylindrical bar may perform poorly in a round-bottom flask.
An oval bar often follows a curved vessel more smoothly.
A pivot-ring bar may work better on a slightly uneven bottom.
The stir bar must also suit the vessel diameter. An oversized bar may strike the walls and lose stability.
High liquid resistance can overcome the available magnetic torque.
Try the following steps:
Reduce the stirring speed
Reduce the sample volume
Use a stronger stir bar
Use a more powerful magnetic stirrer
Choose a flatter vessel
Switch to an overhead stirrer
Repeated spinout often means the setup exceeds the practical limits of the magnetic stirrer.
Note: Spinout is usually caused by a setup mismatch. It does not always indicate equipment failure.
Magnetic stirrers are suitable for many routine laboratory processes.
Common applications include:
Buffer preparation
Reagent preparation
Titrations
Salt dissolution
Pharmaceutical sample preparation
Environmental testing
Food quality testing
Biological media preparation
Chemical reaction mixing
They also work well in sealed vessels because no mechanical shaft enters the sample.
Only the coated magnetic stir bar contacts the liquid.
This can reduce contamination risk and simplify cleaning.
Other benefits include:
Quiet operation
Compact size
Low maintenance
Hands-free mixing
Easy vessel sealing
Repeatable operation
Reduced operator variation
Manual stirring is inexpensive and convenient for quick tasks.
However, it depends on the operator. Maintaining constant speed and mixing force is difficult.
A magnetic stirrer provides longer and more consistent agitation. It also allows laboratory staff to complete other work during the mixing process.
Factor | Magnetic stirrer | Overhead stirrer |
|---|---|---|
Best liquid type | Low viscosity | Low to high viscosity |
Typical scale | Small to medium | Medium to large |
Mixing force | Moderate | High |
Sealed-vessel use | Excellent | More difficult |
Cleaning | Simple | More components |
Contamination risk | Low | Higher shaft contact |
Setup complexity | Low | Higher |
Suitable samples | Buffers, reagents, solvents | Gels, polymers, slurries |
Use a magnetic stirrer for smaller volumes and lower-viscosity samples.
Use an overhead stirrer for gels, polymers, creams, heavy suspensions, and larger batches.
For laboratories evaluating new equipment, HUXI provides magnetic stirrers and other laboratory instruments for research, pharmaceutical, biotechnology, and industrial laboratory applications. Buyers should compare each model according to its maximum stirring volume, speed range, heating function, plate material, and control method.
Tip: Select a stirrer according to the maximum planned volume and viscosity, not only the average workload.
The magnetic stirrer working principle is simple.
A drive magnet or electromagnetic coil creates a rotating magnetic field beneath the top plate.
This field couples with a magnetic stir bar inside the vessel. The stir bar rotates and transfers motion into the liquid.
The movement creates circulation and controlled vortex formation.
Reliable liquid mixing depends on more than stirring speed.
For stable results:
Choose the correct stir bar.
Use compatible glassware.
Center the vessel on the plate.
Start at a low speed.
Increase RPM gradually.
Avoid excessive vortex depth.
Stay within the volume limit.
Consider sample viscosity.
Monitor the actual sample temperature.
Use an overhead stirrer when more torque is required.
Laboratory buyers should also compare:
Maximum stirring capacity
Speed range
Heating requirements
Plate material
Analog or digital control
Single- or multi-position operation
Temperature probe compatibility
Laboratory safety requirements
A properly matched magnetic stirrer can improve consistency, reduce manual work, and support repeatable laboratory processes.
HUXI offers magnetic stirrers and related laboratory equipment for different mixing and heating requirements. Selecting the correct instrument, vessel, and stir bar helps laboratories achieve stable performance and more reliable results.
A: A Magnetic Stirrer creates a rotating magnetic field beneath the vessel. This field drives a magnetic stir bar, which circulates the liquid and forms a controlled vortex.
A: Place the stir bar inside the vessel, center the vessel on the Magnetic Stirrer, and begin at a low speed. Increase the RPM gradually until stable mixing begins.
A: The stir bar may stop because of excessive speed, poor vessel positioning, high liquid viscosity, or weak magnetic coupling. Stop the unit, recenter the vessel, and restart slowly.
A: A Magnetic Stirrer works best with low-viscosity liquids. Some moderate-viscosity samples may require a stronger stir bar, while thick gels and slurries usually need an overhead stirrer.
A: A hotplate Magnetic Stirrer combines liquid mixing and heating. It can improve dissolution, heat distribution, and temperature-controlled reaction processes.
