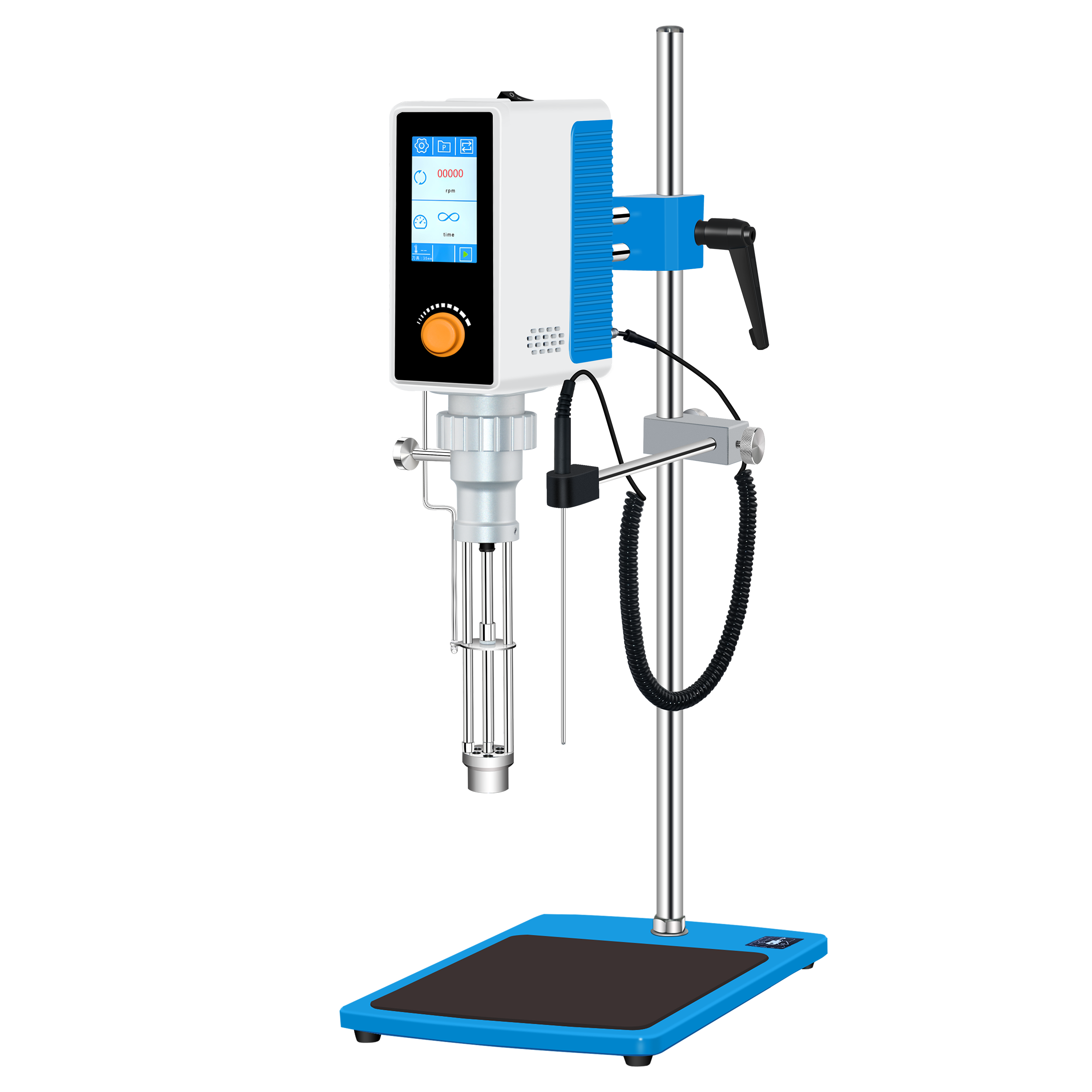

HRF-35AS
HUXI
HRF-35AS homogenizers are suitable for a wide range of applications—mixing, emulsification, homogenization, disintegration, and dissolution—with outstanding efficiency and flexibility. Capacities range from 150 ml to 6 liters. Their brushless motor effectively protects samples, eliminates carbon dust contamination, and is relatively quiet.
Perfect for emulsifying facial cream, lotion and essence. High shear effect realizes uniform mixing of oil and water phases, matching cosmetic formula development.
Crush and disperse biological tissue samples. Brushless motor ensures sample purity for subsequent biological detection and analysis.
This machine integrates emulsification, dispersion, homogenization and dissolution, applicable for samples from 150ml to 6L. Modular design supports replacement of various blades for different processing demands.
Brushless motor eliminates carbon dust to prevent sample contamination. It runs with low noise, creating a quiet working environment for laboratories and production workshops.
4-inch touch screen realizes one-click setting of timing, linear speed and torque. 99 groups of programmable parameters can be stored for repeated use in batch experiments.

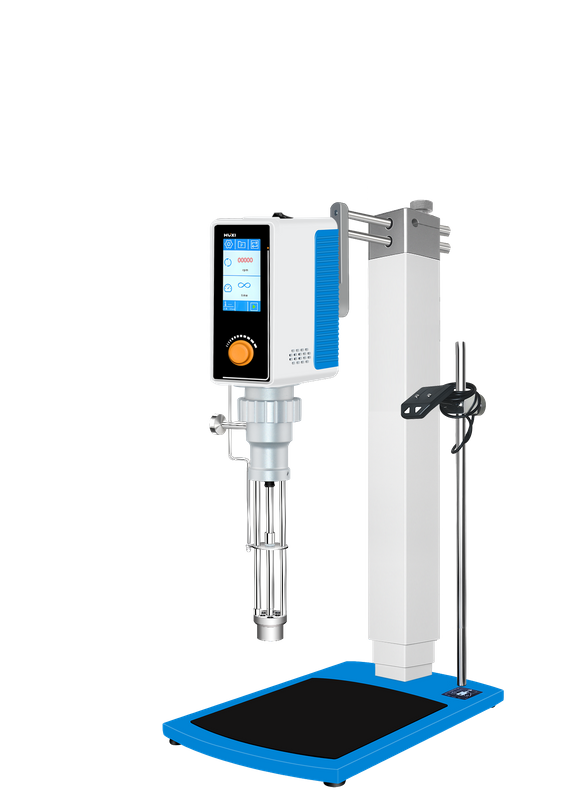

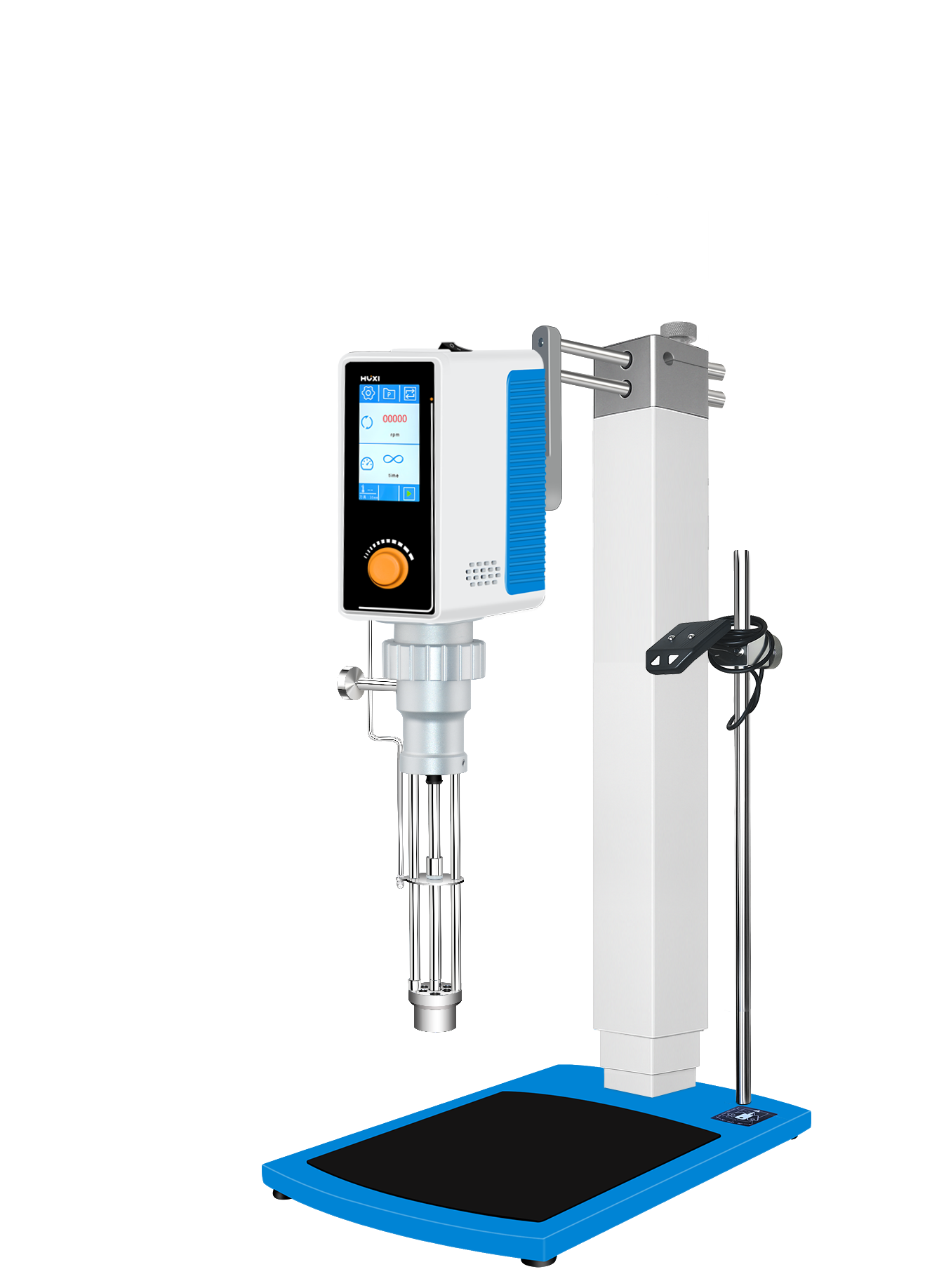

Support manual and electric lifting, which is convenient to adjust the working head height quickly. It greatly improves work efficiency for frequent sample replacement.
Real-time sample temperature display and temperature limit protection. Motor over-temperature and overload auto-stop function effectively protect equipment and test samples.
Model | HRF-35AS |
Article Number | 1004088001 |
Voltage (V) | 220 |
Power (W) | 1000 |
Maximum Stirring Volume (ml) | 150-6000 |
Display | 4-inch touch screen |
Speed Range (rpm) | 1000-16000 |
Speed Setting Accuracy (rpm) | ±10 |
Speed Control Mode | Coarse and fine adjustment |
Timer Setting | Long-term or timed 0-08:00:00 |
Timer Display | 4-inch touch screen |
Program Setting | 99 programmable time and speed settings |
Maximum Torque (N.cm) | 55 |
Maximum Viscosity (mPa.s) | 20000 |
Wetted Materials | SUS316, PTFE |
Data Viewer | View recent experiment time and speed |
Temperature Protection | Displays real-time sample temperature and can set a sample protection temperature |
Motor Protection | Motor has over-temperature protection |
Protection Level | IP42 |
Motor Protection | Auto-stop function on fault display |
Overload Protection | Auto-stop function on fault display |
Data Interface | RS485, Type-C |
Safety Protection | Anti-slip pad |
Permissible Ambient Temperature (°C) | 5-40 |
Permissible Ambient Humidity (%) | 80 |
Optional Accessories | Electric lift |
Device Dimensions (mm) | 315*200*780 |
Device Packaging Dimensions (mm) | 475*340*200 |
Set Packaging Dimensions (mm) | 803*400*140 |
Device Net Weight (kg) | 6 |
Device Packaging Gross Weight (kg) | 7 |
Set Net Weight (kg) | 17 |
Set Packaging Gross Weight (kg) | 19 |
Q: Can I replace different working blades?
A: Yes. This homogenizer adopts modular design, supporting various blades replacement to finish emulsification, dispersion and crushing work.
Q: What is the applicable sample volume range?
A: It supports samples from 150ml to 6L, covering small experimental samples and medium-volume batch processing.
Q: Does it have temperature monitoring function?
A: Sure. It displays real-time sample temperature and supports temperature limit setting to avoid sample damage from overheating.
