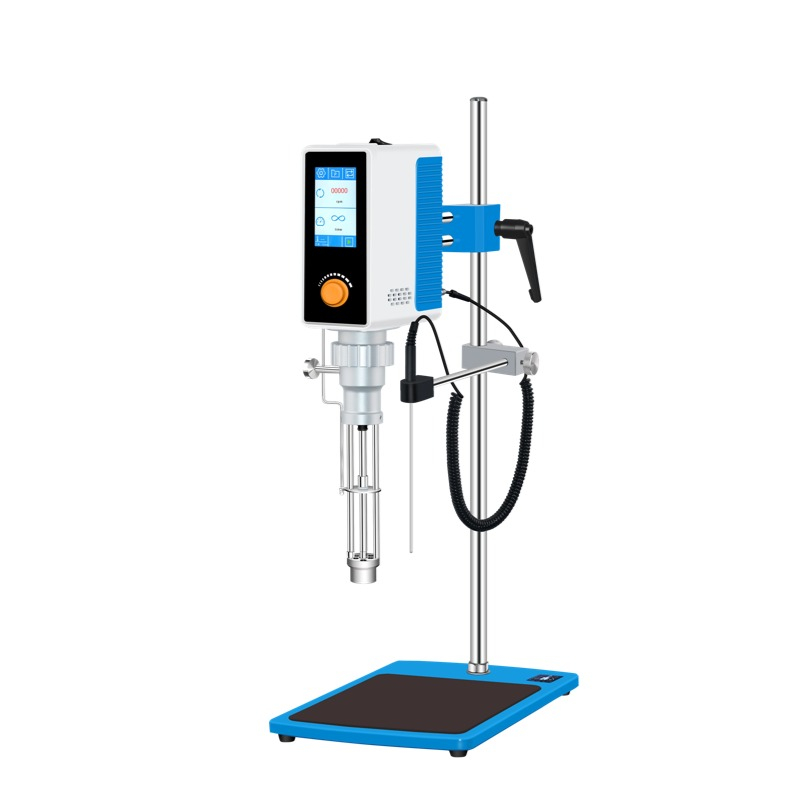

HRF-40AS Emulsifying and Dispersing Homogenizer

Name: HRF-40AS Emulsifying and Dispersing Homogenizer
Brand: HUXI
Rating: 5.0 (8 reviews)

HRF-40AS homogenizer are suitable for a wide range of applications—mixing, emulsification, homogenization, disintegration, and dissolution—with outstanding efficiency and flexibility. Capacities range from 150 ml to 6 liters. Their brushless motor effectively protects samples, eliminates carbon dust contamination, and is relatively quiet.

Availability:

Quantity:



Inquire Add to Basket

Model:
HRF-40AS
Brand:
HUXI
Code:
1004067001

PRODUCT CATEGORY

Product Description

Product features

*Provides a wide range of product options for high-viscosity

sample applications:Various inks, resins, waxes, coatings, and fuels

Daily chemicals: Emulsions, creams, conditioners, and shampoo

Pharmaceuticals: Injections, sugar-coated solutions, topical preparations, and capsules

Foods: Flavorings, ice cream, and yogurt

*Provides system solutions for low-flow samples

* Supports various blade replacements and a modular design

* Intelligent solutions with touchscreen, programmable timing, linear speed, and torque settings

* Brushless motor: No carbon dust contamination, preventing contamination of samples by external contaminants, protecting user health, and reducing noise pollution.

Technical Specifications

Model	HRF-40AS
Item Number	1004067001
Voltage (V)	220
Power (W)	1500
Processing capacity ml	300~20000
Display	4.3 inch touch screen
Speed Range (rpm)	1000~16000
Speed Setting Accuracy (rpm)	±10
Speed Control Mode	Coarse and fine adjustment
Timer Setting	Long-term or timed 0~08:00:00
Timer Display	4.3 inch touch screen
Program Setting	99 programmable time and speed settings
	80 groups of four-stage cycles (ABCD) control
Maximum Torque (N.cm)	55
Maximum Viscosity (mPa.s)	20000
Wetted Materials	SUS316、PTFE
Data Viewer	View recent experiment time and speed
Temperature Protection	Measure the sample temperature and set the maximum temperature limit for sample protection at -99~299℃
Motor Protection	Motor has over-temperature protection
Protection Level	IP42
Motor Protection	Auto-stop function on fault display
Overload Protection	Auto-stop function on fault display
Data Interface	RS485、Type-C
Data storage	4000 items (exceeding the loop coverage)
Safety Protection	Anti-slip pad
Permissible Ambient Temperature (°C)	5~40
Permissible Ambient Humidity (%)	80
Optional Products	Electric lift
Set of instruments dimensions mm	360230780
Host packaging dimensions mm	470345205
Set packaging size mm	810400140
Device Net Weight (kg)	6
Device Packaging Gross Weight (kg)	7
Set Net Weight (kg)	17
Set Packaging Gross Weight (kg)	19
