HX-CF5/HX-CF10/HX-CF20/HX-CF50/HX-CF100
HUXI
1038001001/1038002001/1038003001/1038004001/1038005001

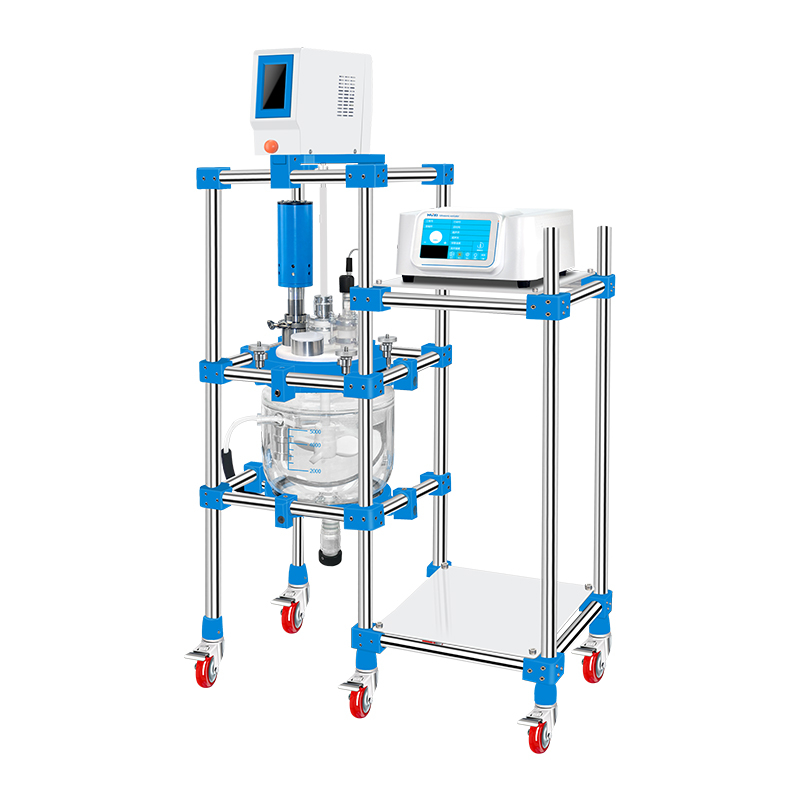

Ultrasonic glass reactor is a kind of multifunctional and multi-purpose instrument that uses strong ultrasound to produce cavitation effect in liquid and ultrasonically treat substances. It can be used to break a variety of animal and plant cells, virus cells, and can be used for emulsification. Separation, homogenization, extraction, defoaming, cleaning and accelerating chemical reactions, etc. It is widely used in biochemistry, microbiology, medicinal chemistry, surface chemistry, physics, zoology and other fields..
Product Features:
·Intelligent storage for creating and storing up to 20 sets of operating programmes;
·Power adjustment: 2500W or above models can automatically adjust the ultrasonic power according to the depth of the horn immersed in the liquid level;
·Optional homogenizer continuous running up to 4 hours and a wide processing range;
·Different models can be applied to different experimental needs, with 5~100L capacity options;
·Homogenising, emulsifying, sonicating and mixing can be operated simultaneously or any function can be selected to be switched on individually;
·Made of high borosilicate glass, has excellent corrosion resistance, high and low temperature resistance, and can withstand large thermal shock; ·Adopts stacking stand design, which greatly saves operating space.
Technical Parameters:
Model | HX-CF5 | HX-CF10 | HX-CF20 | HX-CF50 | HX-CF100 |
Reactor Capacity | 5L | 10L | 20L | 50L | 100L |
Glass ports | 6 | 6 | 6 | 6 | 6 |
Cover diameter | 180mm | 265mm | 265mm | 265mm | OEM |
Length of kettle body | 400mm | 450mm | 550mm | 850mm | OEM |
Stirring Power | 400W | 400W | 400W | 600W | 600W |
Rotating Speed | 10-400rpm | 10-400rpm | 10-400rpm | 10-400rpm | 10-400rpm |
Ultrasonic frequency | 20-25Khz | 20Khz | 20Khz | 20Khz | 20Khz |
Ultrasonic power | 2000W | 3000 | 4000w | 4000W | 4000W*2 |
Ultrasonic pulse time on | 0.1-99.9s | 0.1-99.9s | 0.1-99.9s | 0.1-99.9s | 0.1-99.9s |
Ultrasonic pulse time off | 0.1-99.9s | 0.1-99.9s | 0.1-99.9s | 0.1-99.9s | 0.1-99.9s |
Total working hours | 1-99h59min59s | 1-99h59min59s | 1-99h59min59s | 1-99h59min59s | 1-99h59min59s |
Power regulation | Automatic recognition | Automatic + manual amplitude adjustment | Automatic + manual amplitude adjustment | Automatic + manual amplitude adjustment | Automatic + manual amplitude adjustmentamplitude adjustment |
Tip diameter of horn | 40mm | 40mm | 40mm | 40mm | 40mm*2 |
Control + display mode | TFT touch screen | TFT touch screen | TFT touch screen | TFT touch screen | TFT touch screen |
Data storage | 20sets | 20sets | 20sets | 20sets | 20sets |
Voice prompt + alarm function | Yes | Yes | Yes | Yes | Yes |
Temperature protection function | Yes | Yes | Yes | Yes | Yes |
Overload protection function | Yes | Yes | Yes | Yes | Yes |
Transducer air cooling function | Yes | Yes | Yes | Yes | Yes |
Horn material | Titanium alloy | Titanium alloy | Titanium alloy | Titanium alloy | Titanium alloy |
Thermostat function of reactor jacket | Optional | Optional | Optional | Optional | Optional |
Inlet port/outlet port/temperature measuring port | Standard | Standard | Standard | Standard | Standard |
Power supply | 220V50Hz | 220V50Hz | 220V50Hz | 220V50Hz | 380V50Hz |
Reactor material | Borosilicate glass | Borosilicate glass | Borosilicate glass | Borosilicate glass | |
Optional Thermostat | HLC-1006 | HLC-1015 | HLC-1020 | HLC-1050 | Large-sized refrigeration machine, requires customization |
