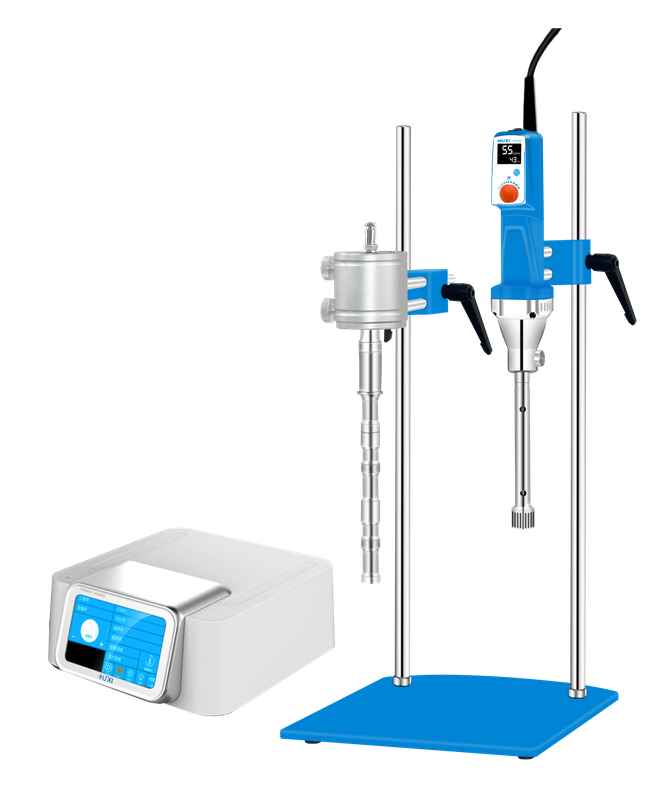

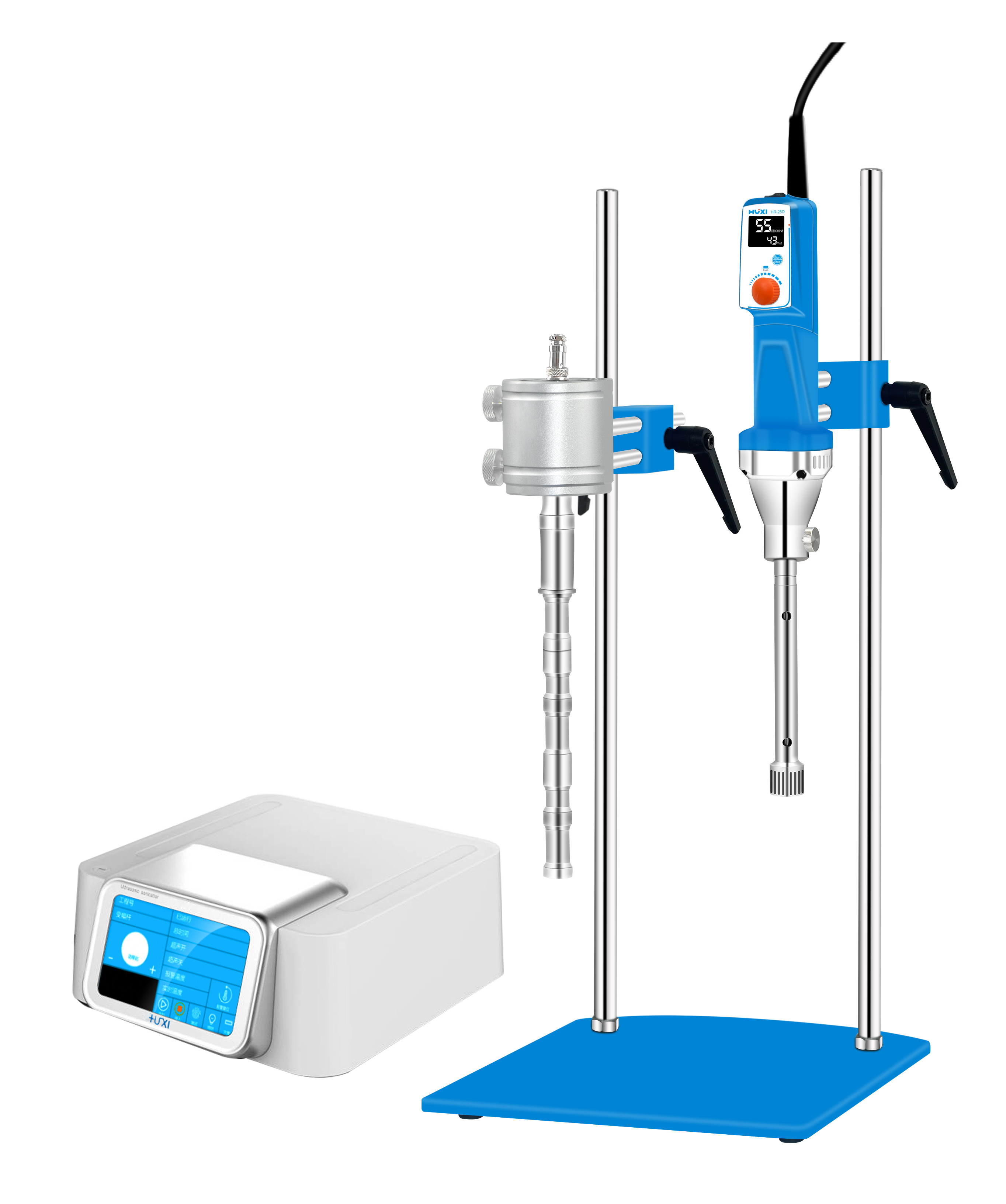

HXR-2000 High-Speed Ultrasonic Emulsifier

The HXR-2000 high-speed ultrasonic emulsifier is a combination of an ultrasonic  vibrator and a high-speed emulsifier integrated. It is a kind of professional application  for the dispersion of samples with large volume, pilot test and high sample concentration;its energy output It is a flexible and flexible device that can be used in a variety of  directions. It can effectively handle large volumes, high concentrations, high viscosity  and poor flowability of samples. Applications for Graphene, silicon oxide, carbon  nanotubes, gels, resins, etc.

Product Features:

• Ultrasonic controller adopts self-developed circuit, ultrasonic generator device  working voltage 220V/AC, ultrasonic circuit apparatus with over-voltage, over-current, output short circuit and other protective measures;

• The ultrasonic circuit has automatic frequency tracking to maximise transducer  efficiency and achieve the best results;

• Ultrasonic controller has power adjustment function, the output power can be  continuously adjusted to adapt to the requirements of various sample objects;

• Equipped with a display showing the working status for easy observation of the  ultrasonic controller;

• 30JX special high shear working head meets the processing capacity of  0.25L-10L, applicable to different sample processing requirements;

• The whole machine has a compact structural design and exquisite modelling,  providing a linear speed of 47m/s for sample homogenisation;

• Can be paired with a temperature sensor to measure the sample temperature in  real time, and when it reaches the set value, it will stop running automatically.

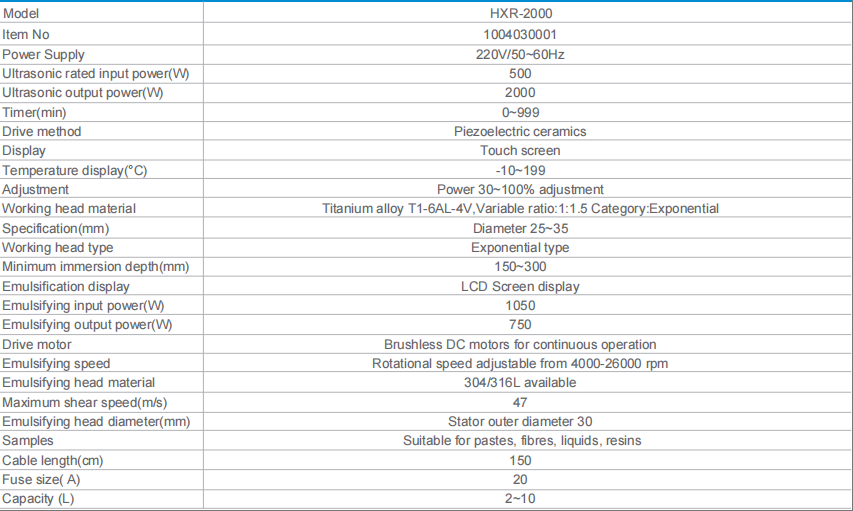

Technical Parameters:
