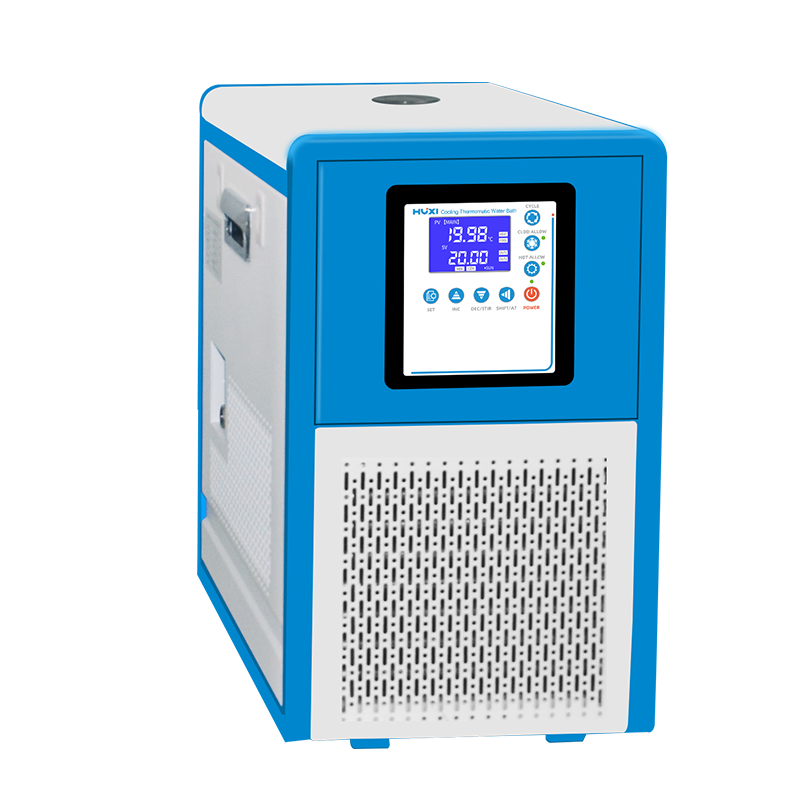

HXS Series Small Chiller (Low Temperature Pump)

HXS series Small low-temperature chiller adopts the latest international advanced  refrigeration system, stable and reliable performance. External circulation function  through the high-pressure pump to the tank liquid medium circulation constant  temperature, increase the tank temperature uniformity, reduce temperature fluctuations.The principle is to export the thermostatic medium in the tank through the heat  preservation hose to establish the external constant temperature, to provide constant  temperature thermostatic coolant for testing experiments or production, the temperature is uniform and constant liquid environment, the thermostatic coolant can be  recycled and reused.

Product Features:

• Large backlight LCD display

• ABS mold design, streamlined and beautiful;finely crafted,humanized R-rounded  corner design,prevent operators from injuring of the chassis; foam plastic packaging, to avoid damage during transportation;

• High-performance motor, low noise, low heat, fully enclosed, long life; use of heat-free circulation pump to avoid the water pump  affecting the tank temperature due to its own heat generation;The impeller at the bottom of the circulation pump is closed and  removable, which is convenient for maintenance;

• SS304 table and inner tank, the refrigeration coil has added positioning and surface treatment, provent shaking or corrosion and  rust during transportation or use;

• Equipped with sealed liquid filling port, overflow port and liquid level viewing window, convenient to observe and prevent the liquid  in the cavity from being drained or empty during external circulation;

• With power-off protection and over-temperature alarm functions;

• Fully enclosed compressor, refrigeration system has protection for overheating and overcurrent;

• The surrounding panels are flexibly disassembled and assembled, easy to clean;

• Instrument works stably and reliably, easy and safe to operate, with temperature calibration and self-tuning functions;

• The circulation interface and drain port are made of SS304 spagoda joints, quick and reliable to install, built-in drain valve design.

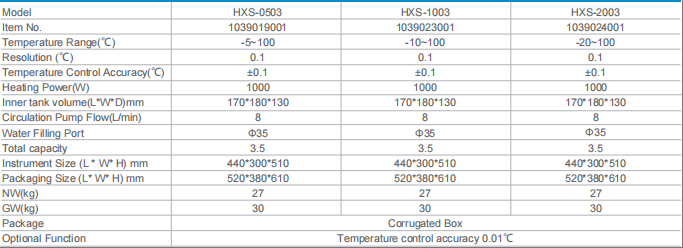

Technical Parameters:
