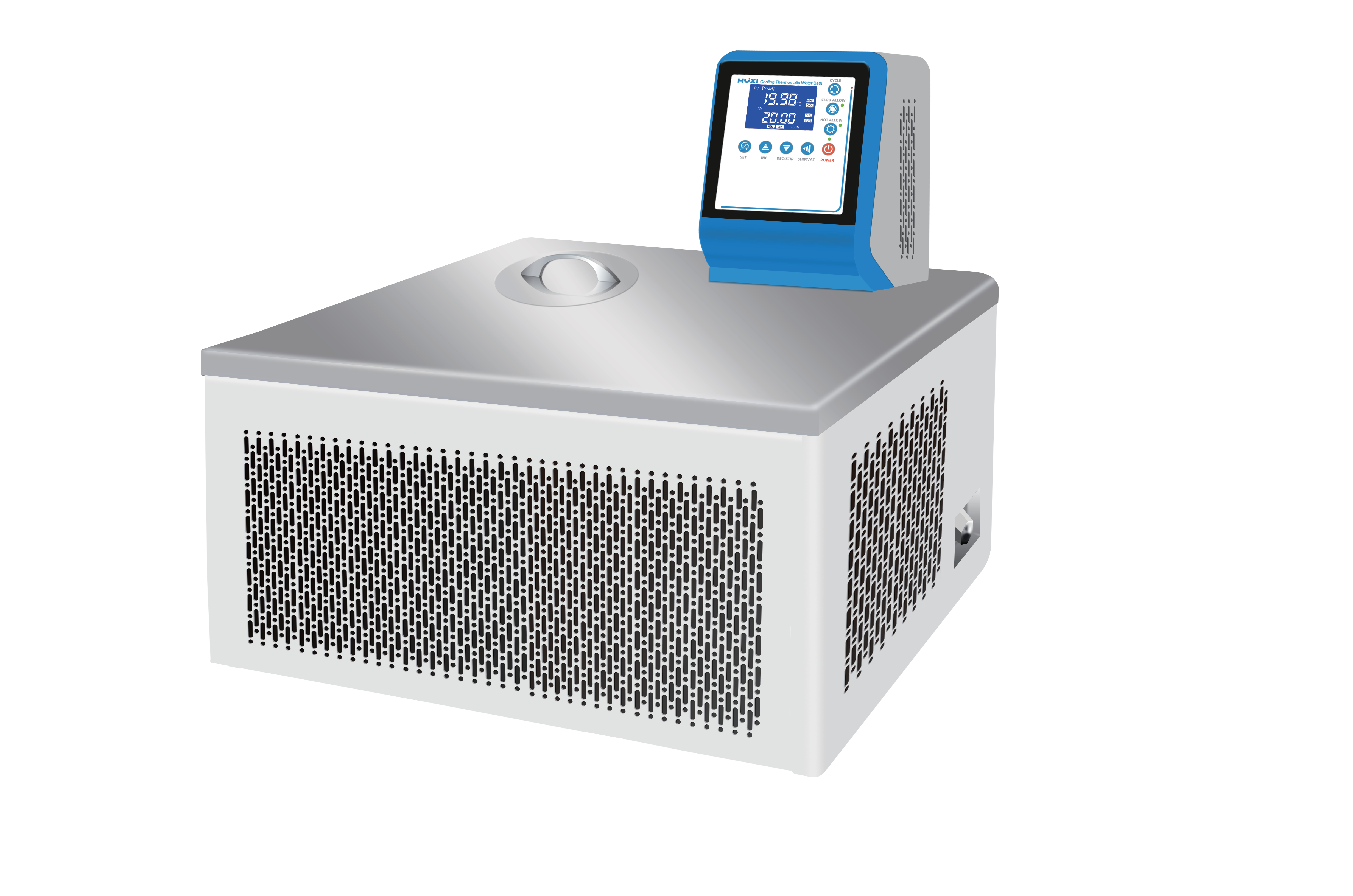

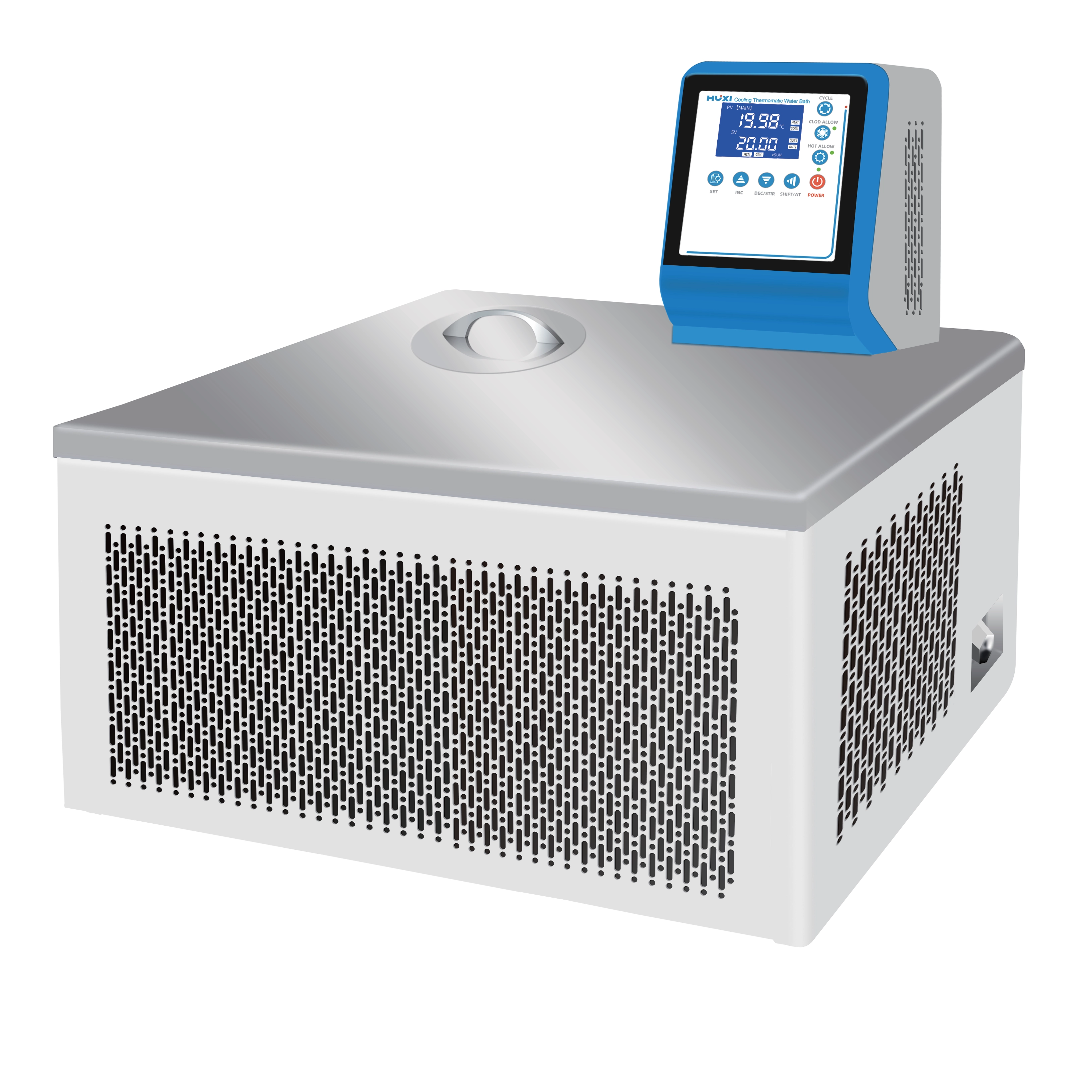

HLC-W Series Horizontal Thermostatic Bath

Horizontal low-temperature thermostat, our company optimised on the basis of the original thermostat, small volume, exquisite appearance, can be used as a viscometer special thermostat, can also be used for other thermostatic experiments, Φ110mm large opening  can be put 500ml and other different specifications of beakers or containers, can be fitted with different specifications of stainless steel  bracket base, to meet the different specifications of the beaker. The temperature of the liquid in the tank is directly transferred to the  test sample, and the rotor of the rotational viscometer can be conveniently put into the beaker for testing. Rotational viscometer test  special thermostat tank fully in line with the JJG 1002-2005 rotational viscometer test specification in the outer cylinder and no outer  cylinder two test methods.

Product Features:

• 304 stainless steel table plate, liner, for the refrigeration coil increased  positioning and surface treatment process, can effectively solve the  refrigeration coil transport or use of shaking, to avoid corrosion, rust,  etc.;

• Fully enclosed motor impeller, to prevent the cause of safety hazards;multiple safety protection: heating tube low level of empty burn protection, alarm lights and sound at the same time to remind;

• Fully enclosed compressor, refrigeration system has protection for  overheating and overcurrent;

• Circulation interface and drain port all use 304 stainless steel pagoda  connector, installation is fast and reliable, the drain valve is designed for  built-in hidden type, beautiful and generous, can effectively avoid  delivery or transport caused by unnecessary damage.

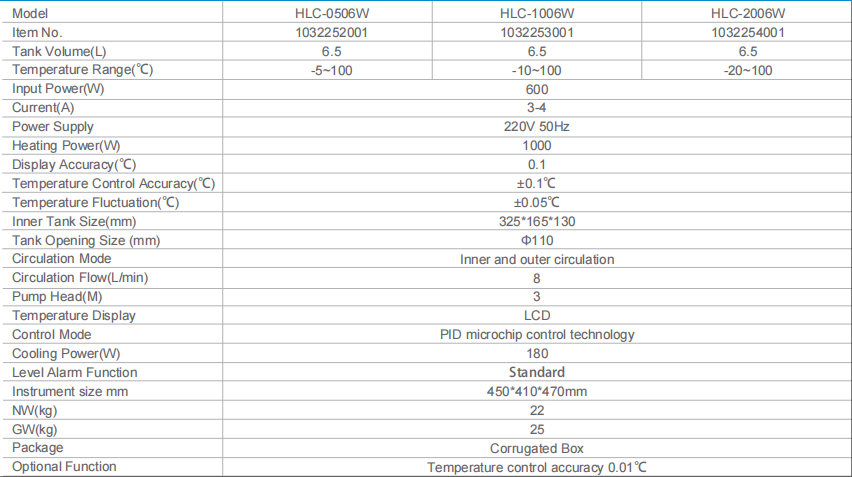

Technical Parameters:
