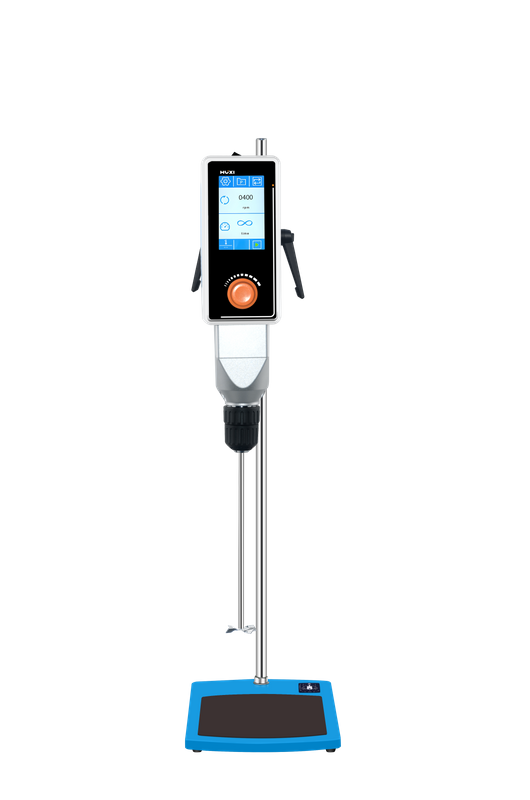

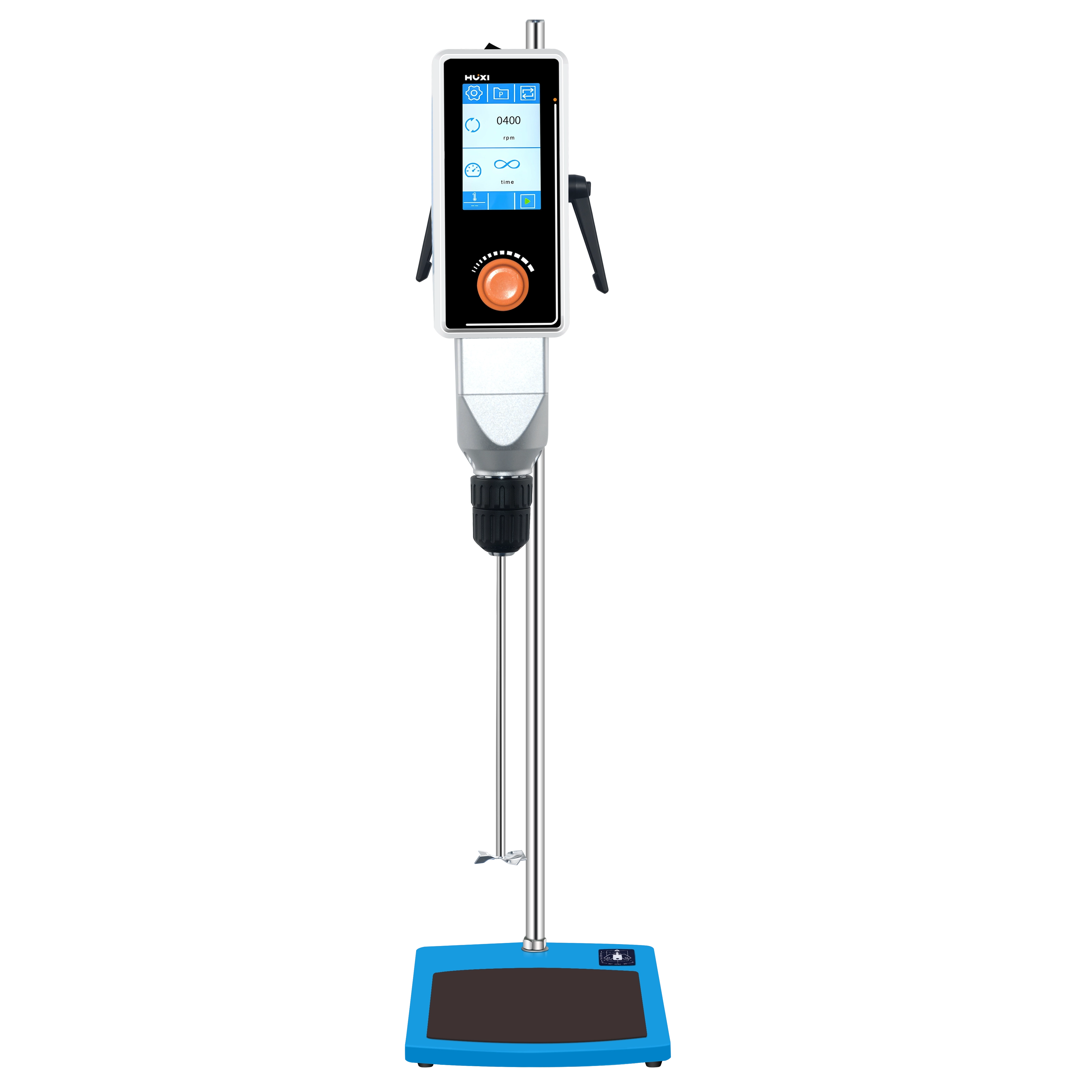

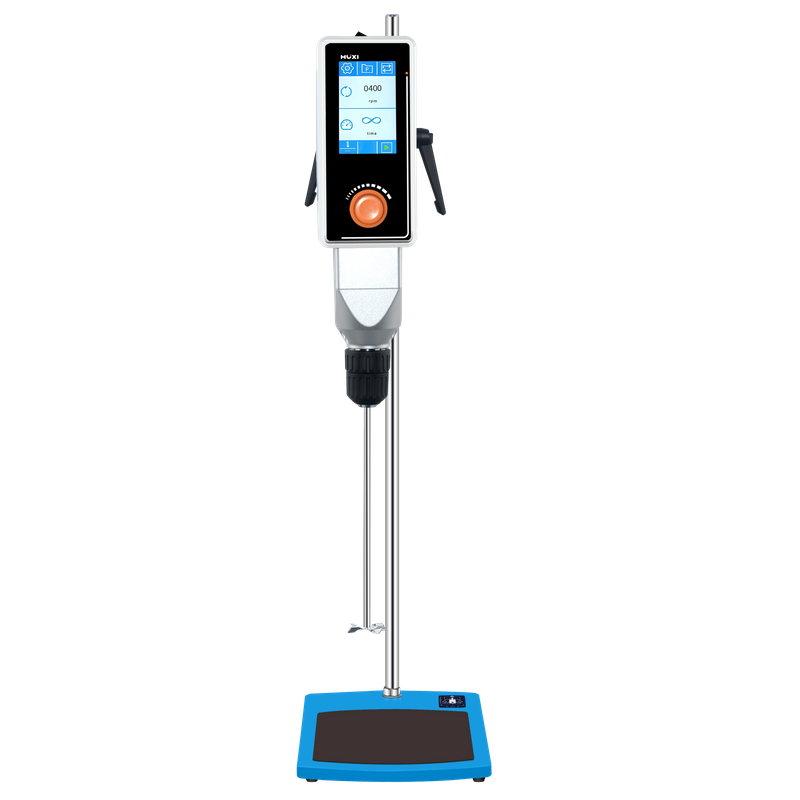

RWD50ADS/RWD100ADS/RWD150ADS/RWD200ADS are a high-torque programmable overhead stirrer with a 4.3-inch LCD touch screen. Equipped with a brushless motor, it mixes solid-liquid, liquid-liquid and high-viscosity samples for 20L~100L capacity. It supports long-time timing, 99-segment program control and forward/reverse rotation. Built-in multiple safety protections, it is widely used in pharmaceutical, chemical, food and biological laboratories.
| Availability: | |
|---|---|
| Quantity: | |
RWD50ADS/RWD100ADS/RWD150ADS/RWD200ADS
HUXI
ADS series high-power stirrer is a programmable top-mounted stirrer with a large LCD touchscreen display and high torque. It features a self-locking chuck, adjustable speed and time, and is used for mixing solid-liquid, liquid-liquid, or medium-to-high viscosity samples. It is primarily used in scientific research, pharmaceuticals, chemicals, petrochemicals, cosmetics, food, and biological fields.
This stirrer delivers a maximum torque of 200 N.cm and handles viscosity up to 10000 mPa.s. The microelectronic processor keeps rotating speed stable even with changing material viscosity, ensuring consistent stirring effect for long-term experiments.
The 4.3-inch touch screen works well with gloves. Screen lock function avoids accidental touch. Digital real-time speed display makes parameter recording and adjustment convenient for lab operators.
It has overload, short circuit and motor fault protection, which will auto stop and alarm abnormally. The sample temperature protection ranges from -160℃ to 600℃ to protect samples and equipment.
The plastic chuck resists organic solvent corrosion. It gives audible prompts after correct installation to avoid misalignment. The paddle penetration hole allows quick height adjustment of stirring paddles.
It supports 99-segment speed/time/rotation control and 80 groups of four-segment cycle programs. The maximum timing reaches 8 hours, fully meeting complex and continuous experimental demands.
| Model | RWD50ADS | RWD100ADS | RWD150ADS | RWD200ADS |
| Item number | 1003041001 | 1003040001 | 1003039001 | 1003038001 |
| Maximum stirring capacity | 20L | 40L | 60L | 100L |
| Speed range | 5-400rpm | 5-400rpm | 5-400rpm | 5-400rpm |
| Display accuracy | ±1rpm | ±1rpm | ±1rpm | ±1rpm |
| Program control | 99th segment: Speed control, time control, forward/reverse rotation control | 99th segment: Speed control, time control, forward/reverse rotation control | 99th segment: Speed control, time control, forward/reverse rotation control | 99th segment: Speed control, time control, forward/reverse rotation control |
| 80 groups of four-stage cycles (ABCD) control | 80 groups of four-stage cycles (ABCD) control | 80 groups of four-stage cycles (ABCD) control | 80 groups of four-stage cycles (ABCD) control | |
| Screen display | 4.3-inch capacitive touch LCD screen | 4.3-inch capacitive touch LCD screen | 4.3-inch capacitive touch LCD screen | 4.3-inch capacitive touch LCD screen |
| Speed control method | Coarse adjustment + Fine adjustment | Coarse adjustment + Fine adjustment | Coarse adjustment + Fine adjustment | Coarse adjustment + Fine adjustment |
| Time range h | 0~08:00:00 | 0~08:00:00 | 0~08:00:00 | 0~08:00:00 |
| Torque display | Torque has a function for displaying the trend of changes. | Torque has a function for displaying the trend of changes. | Torque has a function for displaying the trend of changes. | Torque has a function for displaying the trend of changes. |
| Maximum torque: N.cm | 200 | 300 | 400 | 500 |
| Maximum viscosity (MPa·s) | 150000 | 200000 | 250000 | 300000 |
| Input power W | 60 | 120 | 160 | 400 |
| Output power W | 50 | 100 | 150 | 200 |
| Protection level | IP42 | IP42 | IP42 | IP42 |
| Reverse and forward rotation function | Depending on the type of the agitator, the rotation direction can be selected. | Depending on the type of the agitator, the rotation direction can be selected. | Depending on the type of the agitator, the rotation direction can be selected. | Depending on the type of the agitator, the rotation direction can be selected. |
| Sample temperature protection | Measure the sample temperature and set the maximum temperature limit for sample protection at -99~299℃ | Measure the sample temperature and set the maximum temperature limit for sample protection at -99~299℃ | Measure the sample temperature and set the maximum temperature limit for sample protection at -99~299℃ | Measure the sample temperature and set the maximum temperature limit for sample protection at -99~299℃ |
| Software interface | Type-C, RS485, dedicated software for remote control and data management | Type-C, RS485, dedicated software for remote control and data management | Type-C, RS485, dedicated software for remote control and data management | Type-C, RS485, dedicated software for remote control and data management |
| Motor protection | Displaying a fault will automatically stop | Displaying a fault will automatically stop | Displaying a fault will automatically stop | Displaying a fault will automatically stop |
| Overload protection | Displaying a fault will automatically stop | Displaying a fault will automatically stop | Displaying a fault will automatically stop | Displaying a fault will automatically stop |
| Safety protection | Clamping head protective cover + anti-slip pad | Clamping head protective cover + anti-slip pad | Clamping head protective cover + anti-slip pad | Clamping head protective cover + anti-slip pad |
| Allowable environmental temperature (°C) | 5~40 | 5~40 | 5~40 | 5~40 |
| Allowable environmental humidity (%) | 80 | 80 | 80 | 80 |
| Dimensions of the main instrument mm | 100*180*360 | 100*180*360 | 100*180*360 | 100*180*360 |
| Set of instruments dimensions mm | 230*360*780 | 230*360*780 | 230*360*780 | 230*360*780 |
| Host packaging dimensions mm | 540*470*220 | 540*470*220 | 540*470*220 | 540*470*220 |
| Set packaging size mm | 890*510*220 | 890*510*220 | 890*510*220 | 890*510*220 |
| NW of the main instrument kg | 5.7 | 6 | 6.4 | 6.5 |
| GW of the main instrument kg | 8 | 8 | 9 | 9 |
| NW of the complete set of instruments kg | 16.2 | 17 | 17.4 | 17.5 |
| GW of the complete set of instruments kg | 18.5 | 18.5 | 20 | 20 |
Q: Can this stirrer work with high-viscosity samples?
A: Yes. Its max torque is 200 N.cm and it supports up to 10000 mPa.s viscosity. The stable speed system ensures normal stirring even for thick samples.
Q: Is the chuck resistant to organic solvents?
A: Absolutely. We adopt corrosion-resistant plastic chuck, which can effectively resist erosion from common lab organic solvents and extend service life.
Q: Will the machine be damaged by overload?
A: No. It has overload and short circuit protection. It will cut off power and alarm automatically to protect the motor and samples.
