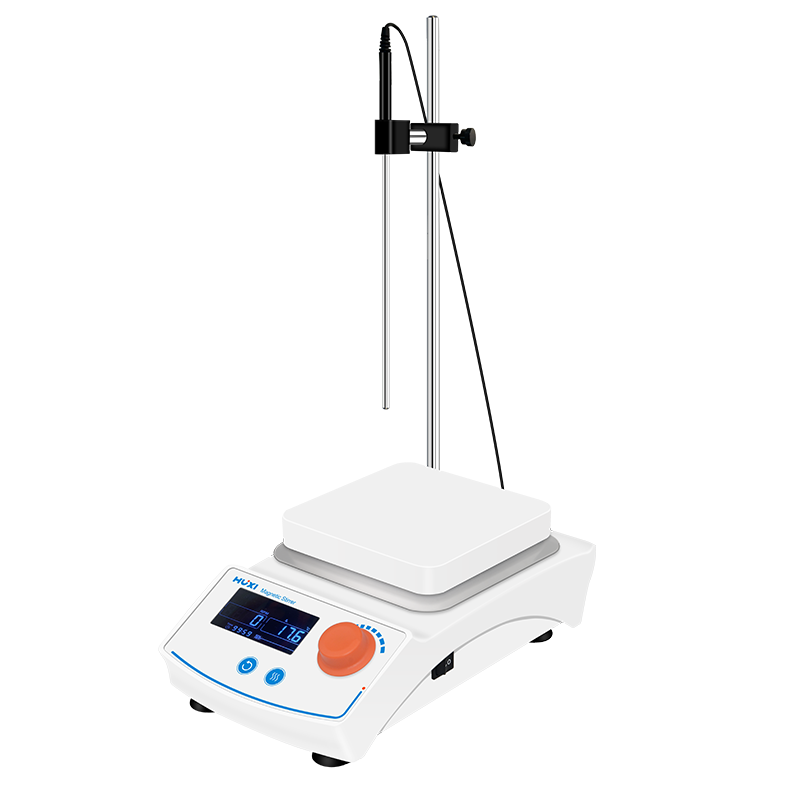

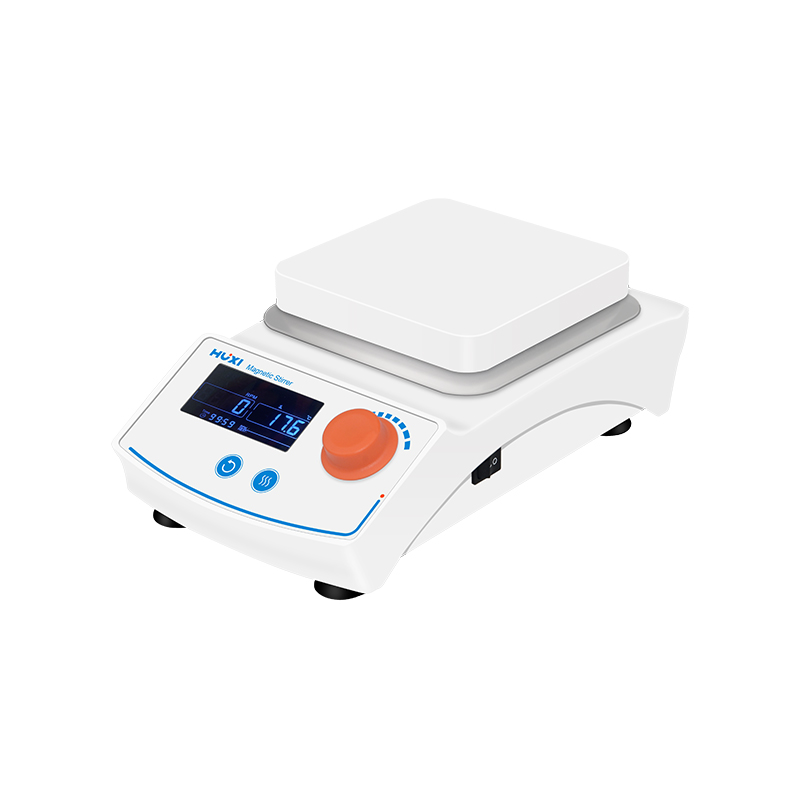

Square Hot Plate Magnetic Stirrer

The square hot plate magnetic stirrer is specially developed and designed for applications  with higher requirements on handling capacity, temperature and power. The upgraded  heating magnetic stirrer has better performance, stronger functions and wider applications, suitable for stirring or heating and stirring at the same time, liquid or solid-liquid  mixture with less viscosity.

Product Features:

• The ceramic coated working surface of the stainless steel pan is chemically resistant and pollution-free;

• Wide temperature control range, up to 350℃.External temperature sensor PT100, can accurately control the temperature accuracy to ± 1 "℃;

• Mica sheet heating high-temperature insulating properties of corrosion superior thermal conductivity, more uniform heat.DC brushless motor,  low noise, low maintenance, smooth operation, long service life;

• LCD liquid display with backlight design, easy to set and monitor the data in operation.LCD liquid display shows the temperature, speed and running  time in real time, clearly visible;

• With time setting function cell, can set 0-99h59min, make the experiment operation more convenient;

• Double heating control circuit, when a heating circuit occurred when the thin can continue to maintain the temperature stability.Knob with the  operation of locking anti-misoperation function, to prevent accidental changes in the operating state, to improve the safety of the experiment;

• Pressed aluminum sealed heat insulation shell effectively prevent liquid and gas into the instrument, to protect the circuit components from  corrosion.

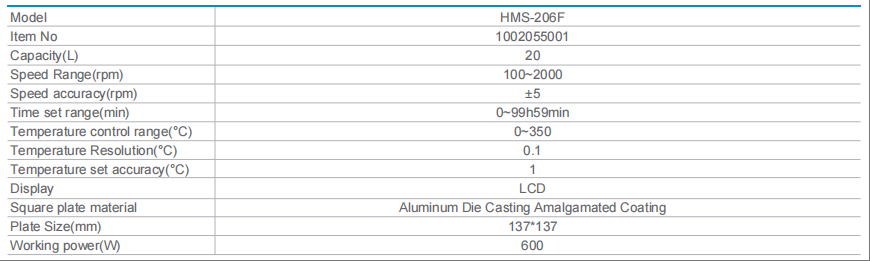

Technical Parameters:
