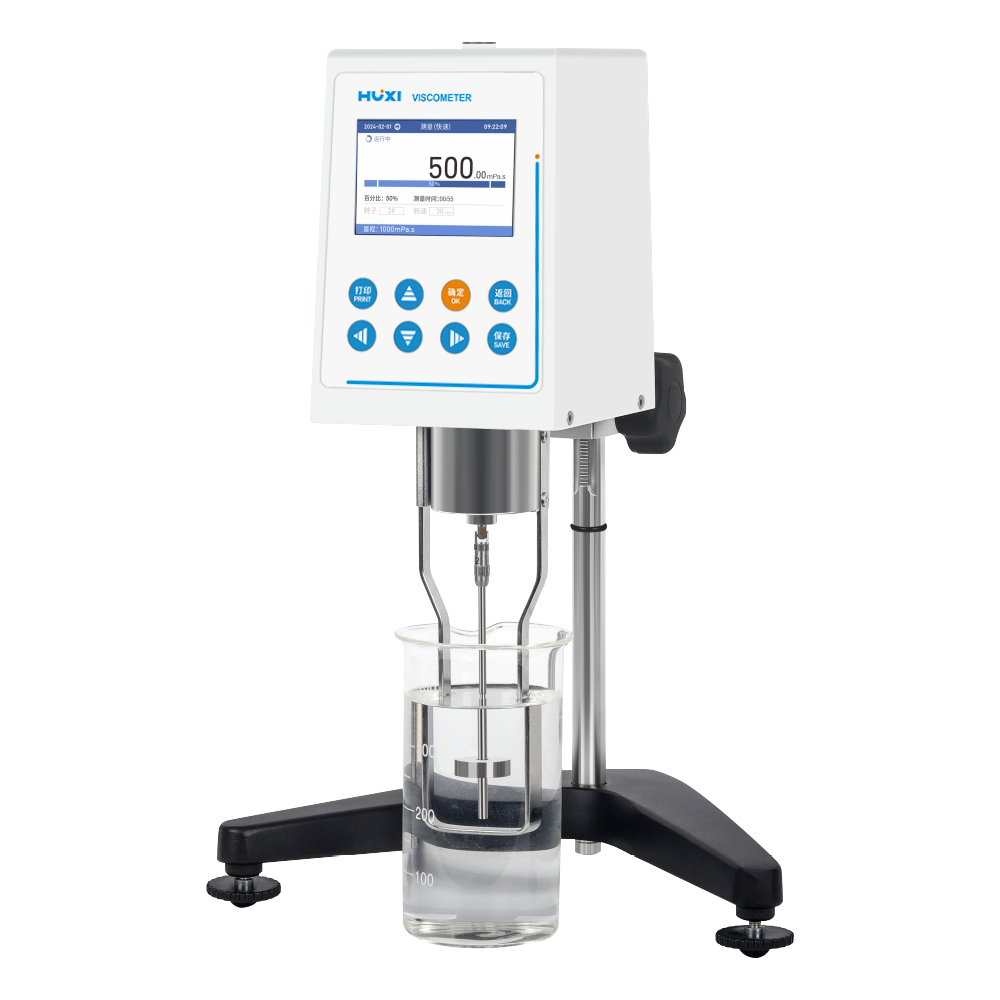

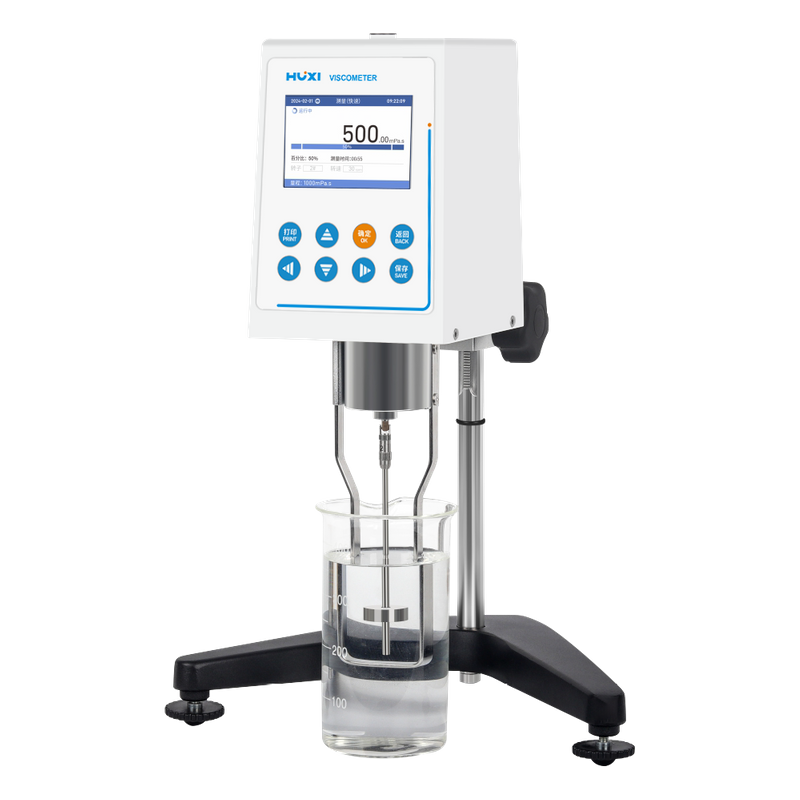

Product Features
100~240V wide voltage，wide applications;
Adopting a 3.5-inch high-resolution IPS full-color display, it features intuitive data presentation, which can directly show the viscosity, rotational speed, temperature, percentage torque, rotor number, and the maximum measurable viscosity value of the selected rotor at the current rotational speed;
It is equipped with multiple optional rotational speeds to meet different measurement ranges, and comes with a universal swivel shaft for easy installation.;
It adopts excellent mechanical design technology, manufacturing processes and microcomputer control technology, ensuring stable data acquisition.
Technical Parameters
Model | NDJ-9S |
Item No. | 1049004001 |
Measurement range/ mPa.s | 1-100000mPa.s |
Display | 3.5-inch full-color IPS screen |
Resolution /mPa.s | 0.01mPa.s |
Speed /rpm | 0.3/0.6/1.5/3/6/12/30/60rpm |
Spindle spec. | No.0、No.1、No.2、No.3、No.4 |
Temperature Display | Temperature Sensor |
Measurement Mode | Quick |
Measurement Error % | ±2%（Newtonian Liquid） |
Measurement Repeatability% | ±1%（Newtonian Liquid） |
Functions | Normal Measurement、Curve Measurement、Data Recording、Viscosity Conversion、Printing |
Language | Chinese/English |
Measurement Records Storage | 50 |
Data Interface | USB、RS232 |
Working environment | 0~40℃，Humidity 20%~80%(Without condensed water environment) |
Lifting Stroke mm | 220mm |
Input Power/V | 100~240V，50~60Hz |
Instrument Dimension /mm | 280*260*395mm |
Package Dimension /mm | 375*315*290mm |
NW/kg | About 4kg |
GW/kg | About 5.8kg |
Spindle Range
| No.0 | No.1 | No.2 | No.3 | No.4 |
60rpm | 10mPa.s | 100mPa.s | 500mPa.s | 2000mPa.s | 10000mPa.s |
30rpm | 20mPa.s | 200mPa.s | 1000mPa.s | 4000mPa.s | 20000mPa.s |
12rpm | 50mPa.s | 500mPa.s | 2500mPa.s | 10000mPa.s | 50000mPa.s |
6rpm | 100mPa.s | 1000mPa.s | 5000mPa.s | 20000mPa.s | 100000mPa.s |
3rpm | - | 2000mPa.s | 10000mPa.s | 40000mPa.s | 200000mPa.s |
1.5rpm | - | 4000mPa.s | 20000mPa.s | 80000mPa.s | 400000mPa.s |
0.6rpm | - | 10000mPa.s | 50000mPa.s | 200000mPa.s | 1000000mPa.s |
0.3rpm | - | 20000mPa.s | 100000mPa.s | 400000mPa.s | 2000000mPa.s |
