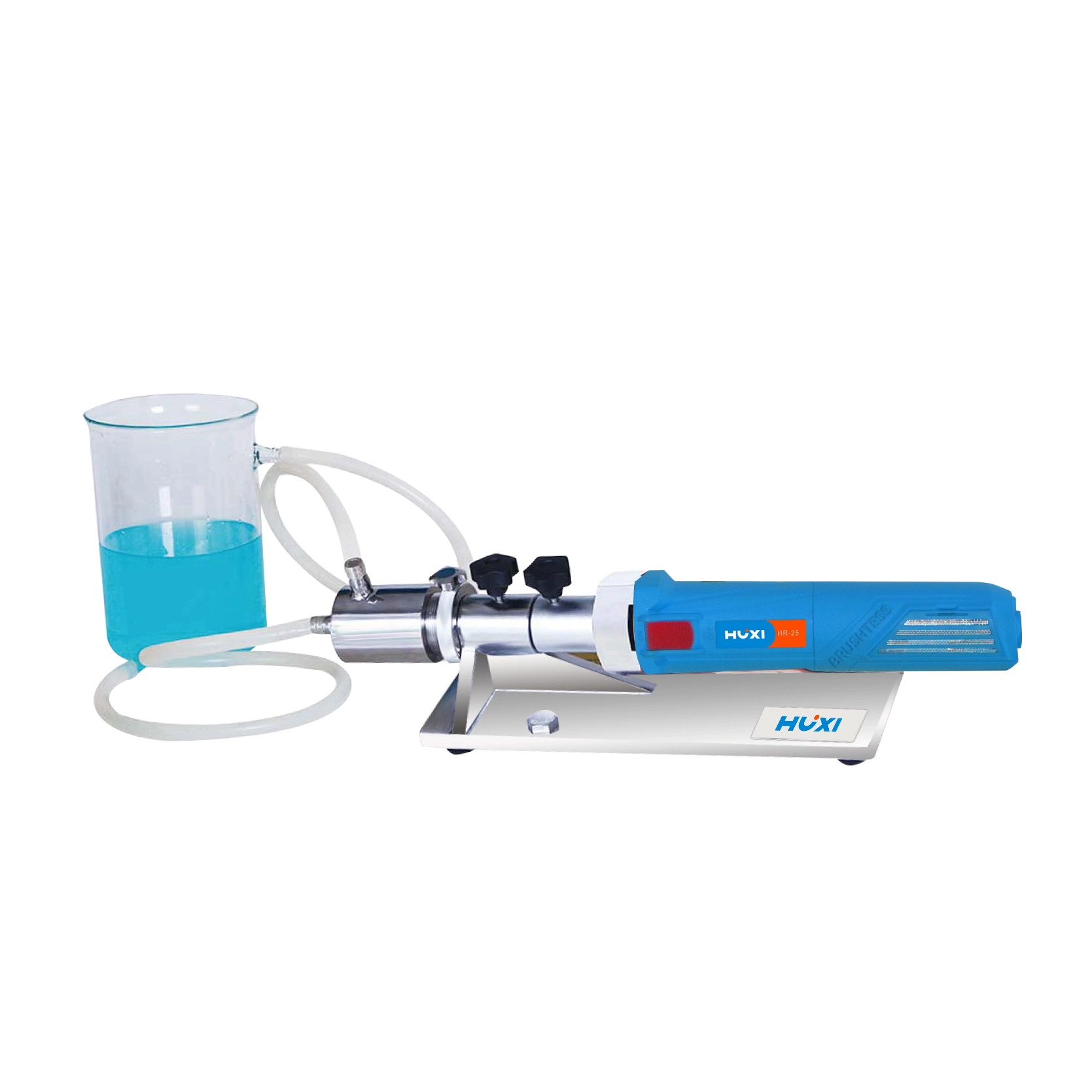

HZR-25/HZR-25D
HUXI
1004027001/1004028001
High mixing efficiency, long-term operation
100% can pass through the shear chamber, high-efficiency homogenization, no dispersion dead corners, etc.
Can meet online circulation or continuous processing
Can complete dispersion, emulsification, homogenization, mixing
chemical industry
Brushless motor, long life design
Maximum speed can reach 30000rpm, maximum shear speed can be provided 27m2/s
Working head and machine base are made of stainless steel, corrosion-resistant
Good sealing effect, unique stator and rotor structure, generate super strong shear force, quickly reduce particles, process materials more finely, and disperse more evenly
Model | HZR-25 | HZR-25D |
Motor power | 1250w | 750w |
Motor type | DC brushless motor | DC brushless motor |
Speed range | rpm | 4000~26000rpm |
Speed mode | Gear control | Knob control |
Speed display | Graduate display | Digital |
Mixing capacity(H2O) | 1~30l/min | 1~20l/min |
Max Viscosity | 10000cp | 10000cp |
Standard working head | 25DG | 25DG |
Standard working chamber | Stainless steel non-jacketed working chamber | Stainless steel non-jacketed working chamber |
Contact material | SUS316L | SUS316L |
Mechanical seal material | SiC | SiC |
Inlet and outlet outer diameter | 12(Hose connection) | 12(Hose connection) |
Dimensions | 460*120*120mm | 460*120*120mm |
Working bracket, base, disassembly tool | Stainless steel standard | Stainless steel standard |
Power supply | 220V50HZ | 220V50HZ |
Permitted ambient temperature | 5-40℃ | 5-40℃ |
Permitted ambient humidity | 80% | 80% |
Gears | 1 | 2 | 3 | 4 | 5 | 6 |
Speed | 7500rpm | 9000rpm | 11550rpm | 17000rpm | 21800rpm | 30000 |
