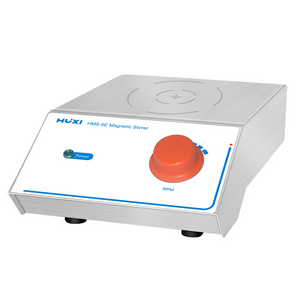

The core mechanism involves placing the liquid or solid-liquid mixture in a container along with a stirrer. When the base generates a magnetic field, it induces a circular motion in the stirrer, thereby accomplishing the stirring process. This design ensures that the mixing is efficient and uniform, suitable for a range of experimental and industrial applications.
| Model | HMS-5E | HMS-5 |
|---|---|---|
| Item No | 1002038001 | 1002039001 |
| Mixing Capacity(L) | 5 | 5 |
| Type | Basic | Digital |
| Voltage(V) | 100~240 | 110~220 |
| Frequency(Hz) | 50~60 | 50~60 |
| Timing Range | - | 0~99h59min |
| Speed Range(rpm) | 50~1800 | 50~1800 |
| Speed Display | - | LCD |
| Adjust Mode | knob | knob |
| Motor Type | Brushless motor | Brushless motor |
| Motor Power(W) | 5 | 5 |
| Shell Material | Stainless Steel | Stainless Steel |
| Working Plate Material | Stainless Steel | Stainless Steel |
| Allowable ambient temperature(℃) | 5~35 | 5~35 |
| Allowable ambient humidity(%) | 80 | 80 |
| Instrument Size(mm) | 20411875 | 20411875 |
| Package Size(mm) | 320275180 | 320275180 |
| NW(KG) | 1.6 | 1.6 |
| GW(KG) | 2 | 2 |
Additionally, this magnetic stirrer is suitable for environmental testing laboratories, where it can be used to mix samples for analysis, such as water or soil samples. Its ability to handle 5L of volume makes it versatile enough for both small-scale experiments and larger batch processes in various industrial quality control settings.
Both the shell and working plate of the HMS Series 5L, 1800rpm Stainless Steel Magnetic Stirrer are crafted from stainless steel. This material not only provides excellent resistance to corrosion from various chemicals but also ensures easy cleaning and maintenance, contributing to the longevity of the device.
Equipped with a brushless motor with a power of 5W, the stirrer operates smoothly and efficiently. Brushless motors are known for their low noise, high efficiency, and long service life, reducing the need for frequent repairs and replacements.
With a speed range of 50~1800rpm, the stirrer offers flexibility to accommodate different mixing requirements. Whether a slow, gentle stir or a faster, more vigorous mix is needed, this device can be adjusted via the knob to meet specific experimental conditions.
The HMS-5 model comes with a timing range of 0~99h59min and an LCD speed display, allowing for precise control and monitoring of the stirring process. This is particularly useful for experiments that require timed mixing or where accurate speed tracking is essential. The HMS-5E, being a basic model, lacks these features but still delivers reliable stirring performance for simpler applications.
With an instrument size of 20411875mm, the stirrer has a small footprint, making it suitable for laboratories with limited bench space. Its compact design does not compromise its functionality, ensuring it can fit seamlessly into various workstations.
