Product Features
● ST vacuum pump with American technology, boasting approximately 0.7kW power, low noise, and high vacuum. Features a Panasonic digital display for adjustable vacuum settings.
● Adjustable revolution and constant rotation ratio, suitable for most material mixing and degassing processes, ensuring stability and reliability.
● Allows setting and memorizing 8 programs, each with 5 stages corresponding to speed and time, adjustable to suit different material requirements.
● High repeatability, bubble-free operation, easy cleaning, extremely high efficiency, and reduced material exposure.
● Removable sealed columnar filter element with large air passage area and excellent filtration effect.
● Protection functions and emergency stop function: Machine cannot start if the door is not closed, or the machine will stop and alarm during startup; the machine will stop and alarm during startup if there is excessive vibration; or the machine will stop and alarm in case of motor malfunction.
● Data export function: Records operation time, operating parameters, vacuum value, and other data, with traceable data.
Technical Parameters

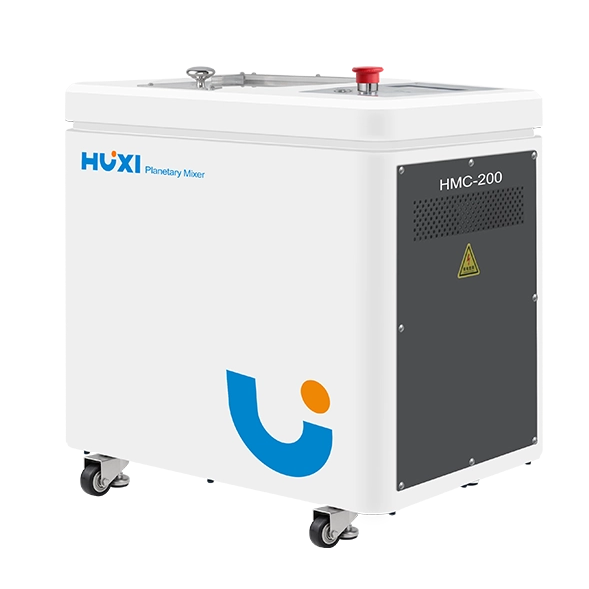

Model | HMC-200 |
Item No | 1035003001 |
Capacity | 350ml*1 |
Max Capacity | 175ml/200g（Depends on the inherent properties of the material.） |
Working mode | Touch Screen |
Parameters groups | 8groups（5segments/group） |
Revolution speed | 130-2000rpm |
Rotation ratio | Constant |
Transmission method | Gear transmission |
Relative vacuum | Approximately -100 kPa (relative to 0 meters altitude) |
Power Supply | AC220V，50Hz |
Power | 1.5kW |
Safety protection | Door cover, vibration, overload, vacuum, emergency stop |
Instrument size（L*W*H） | 585*405*650mm |
NW | 80kg |
Packing List
No | Name | QTY |
1 | HMC-200 planetary mixers
| 1set |
2 | 350ml PP mixing cup | 6 pieces |
4 | PU gas tubes（3m，φ12mm） | 1piece |
5 | Power cord | 1piece |
6 | Manual | 1piece |
