| Quantity: | |
|---|---|

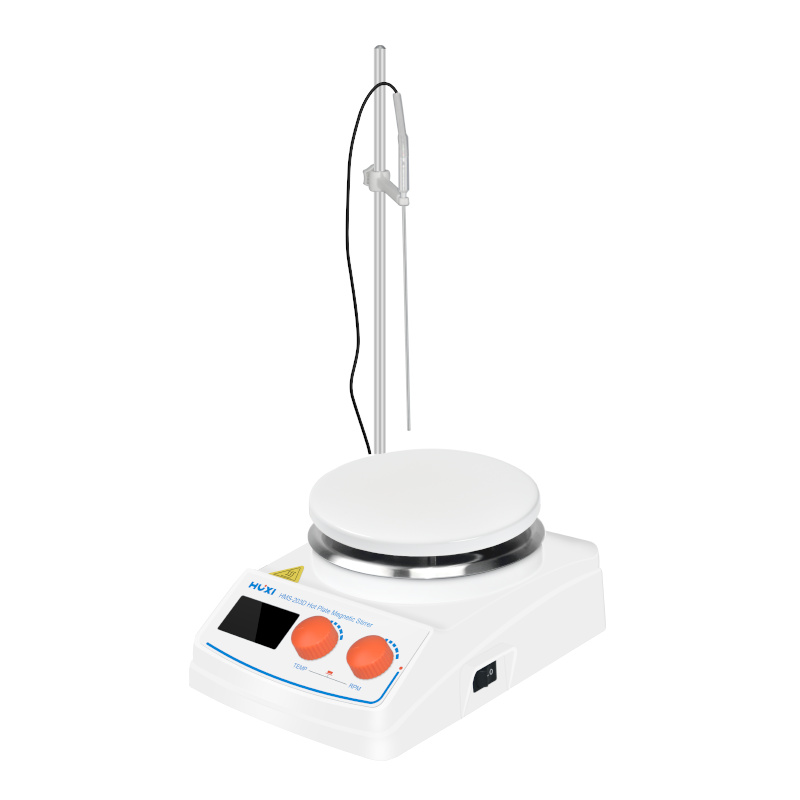

HMS-203D
HUXI
1002051001
Suitable for stirring or heating and mixing at the same time, the viscosity is not very large liquid or solid-liquid mixture. Widely used in colleges and universities, scientific research units, chemical industry, medicine and other fields.
Technical Parameters:
| Model | HMS-203D |
| Item No | 1002051001 |
| Power Supply(V/Hz) | AC200-240/50 |
| Noise(db) | ≤27 |
| Adjust Mode | Double knob |
| Display mode | LCD |
| Display | Temperature ,speed and time |
| Alarm function | yes |
| Operation mode | Continuously/Time setting |
| Operation time | 0~9999min |
| Exterior Temperature sensor | PT100 |
| Motor type | DC brushless motor |
| Heating power(W) | 350 |
| Speed Range(rpm) | 100-2000 |
| Speed Accuracy(rpm) | ±1 |
| Working plate material | Cast Aluminium Ceramic Coating |
| Working plate diameter(mm) | 135 |
| Max capacity(L) | 3 |
| Temperature control (℃) | RT+5~200℃ |
| Temperature control accuracy(℃) | ±1 |
| Heating plate temperature(℃) | ≤320 |
| Stirring bar range（mm) | 20~45 |
| Allowable ambient temperature（℃） | 5~40 |
| Allowable ambient humidity(%) | 80 |
| Instrument Size(mm) | 225x145x103 |
| Packing Size(mm) | 315x270x175 |
| NW(kg) | 3 |
| GW(kg) | 3.5 |
| Shell protection class | IP21 |
Applications:
